SDO HMI 2014-10-09 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.52 | 0.00 | 8.02 | 13.14 | 91.67 | 13.05 | 301.98 | 0.2710 | -37.4 | -43.0 | |
|
previous
or next observation for the same group /

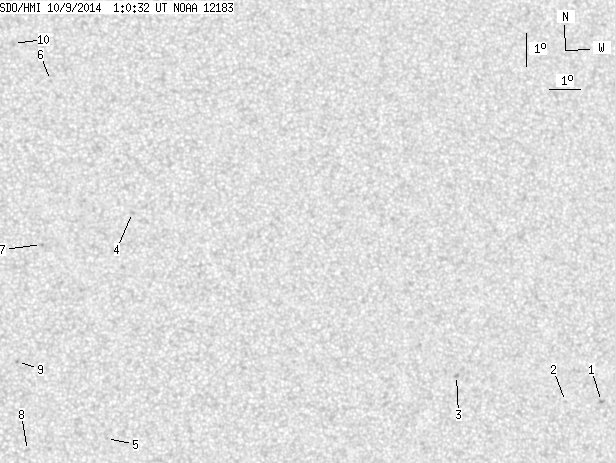

back to the solar disc SDO HMI 2014-10-09 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.91 | 9.41 | 104.15 | 25.53 | 278.66 | 0.4319 | -905.0 | -737.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 9.47 | 102.95 | 24.33 | 279.06 | 0.4133 | 706.0 | 516.8 | |
| 0.00 | 2.19 | 0.00 | 1.16 | 10.40 | 99.43 | 20.81 | 282.66 | 0.3597 | -1004.0 | -780.3 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 15.62 | 89.40 | 10.78 | 312.29 | 0.2446 | 910.0 | 684.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 8.84 | 88.31 | 9.69 | 285.37 | 0.1734 | -716.0 | -586.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 19.70 | 87.01 | 8.39 | 329.46 | 0.2716 | 776.0 | 562.5 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 14.71 | 86.49 | 7.88 | 317.99 | 0.1990 | 869.0 | 723.5 | |
| 0.00 | 2.02 | 0.00 | 1.01 | 8.52 | 85.89 | 7.27 | 287.53 | 0.1318 | -790.0 | -541.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 11.19 | 85.64 | 7.02 | 305.65 | 0.1483 | -891.0 | -598.4 | |
| 0.00 | 2.19 | 0.00 | 1.13 | 20.86 | 85.88 | 7.26 | 334.92 | 0.2797 | 671.0 | 580.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
