SDO HMI 2014-10-09 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.78 | 0.00 | 13.17 | -19.49 | 74.85 | -3.76 | 172.83 | 0.4471 | 391.6 | 315.6 | |
|
previous
or next observation for the same group /

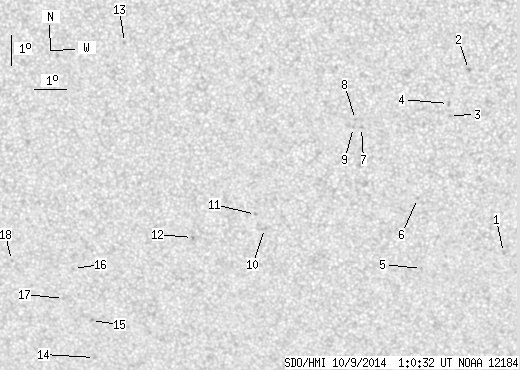

back to the solar disc SDO HMI 2014-10-09 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.88 | -21.14 | 82.16 | 3.54 | 187.13 | 0.4661 | 828.0 | 671.3 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -15.10 | 80.96 | 2.34 | 186.17 | 0.3686 | 878.0 | 685.6 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -16.59 | 80.38 | 1.76 | 184.34 | 0.3917 | 705.0 | 529.1 | |
| 0.00 | 1.84 | 0.00 | 0.99 | -16.20 | 80.35 | 1.73 | 184.33 | 0.3854 | 844.0 | 684.1 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -21.66 | 79.53 | 0.91 | 181.80 | 0.4711 | 775.0 | 614.9 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -19.31 | 79.39 | 0.77 | 181.69 | 0.4343 | 783.0 | 599.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -16.97 | 77.63 | -0.99 | 177.61 | 0.3972 | 892.0 | 668.8 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -16.71 | 77.44 | -1.17 | 177.12 | 0.3931 | 811.0 | 667.4 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -16.97 | 77.38 | -1.24 | 177.00 | 0.3974 | 745.0 | 655.5 | |
| 0.00 | 2.37 | 0.00 | 1.32 | -20.32 | 74.50 | -4.11 | 171.46 | 0.4548 | 551.0 | 504.9 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -19.86 | 74.23 | -4.39 | 170.72 | 0.4483 | 771.0 | 534.6 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -20.65 | 72.18 | -6.44 | 166.95 | 0.4665 | 815.0 | 607.1 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -14.29 | 70.29 | -8.33 | 158.19 | 0.3792 | 884.0 | 644.4 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -24.82 | 68.70 | -9.91 | 163.13 | 0.5406 | -634.0 | -412.8 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -23.53 | 68.71 | -9.91 | 162.35 | 0.5226 | -752.0 | -679.5 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -21.76 | 68.25 | -10.37 | 160.37 | 0.4997 | -535.0 | -415.4 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -22.79 | 67.84 | -10.78 | 160.41 | 0.5163 | -666.0 | -464.9 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -21.53 | 66.23 | -12.39 | 156.75 | 0.5076 | -646.0 | -527.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
