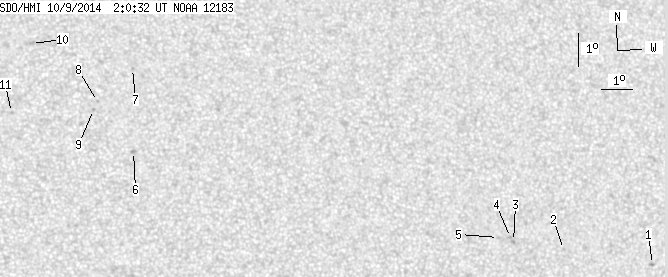

SDO HMI 2014-10-09 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.10 | 0.00 | 7.86 | 12.76 | 92.93 | 14.86 | 301.48 | 0.2921 | 97.5 | 80.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.92 | 9.41 | 104.18 | 26.11 | 278.55 | 0.4409 | -893.0 | -695.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 9.99 | 101.24 | 23.18 | 280.68 | 0.3961 | -753.0 | -561.6 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 10.30 | 99.62 | 21.55 | 282.08 | 0.3712 | -800.0 | -597.7 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 10.43 | 99.53 | 21.47 | 282.45 | 0.3702 | -928.0 | -816.7 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 10.44 | 99.14 | 21.07 | 282.66 | 0.3640 | -802.0 | -624.9 | |
| 0.00 | 1.93 | 0.00 | 0.98 | 13.37 | 87.70 | 9.64 | 307.42 | 0.2060 | 924.0 | 764.9 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 15.88 | 87.79 | 9.72 | 315.97 | 0.2347 | 877.0 | 755.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 14.90 | 86.64 | 8.57 | 316.29 | 0.2095 | 763.0 | 561.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 14.66 | 86.51 | 8.44 | 315.91 | 0.2050 | 940.0 | 775.7 | |
| 0.00 | 2.28 | 0.00 | 1.16 | 16.69 | 84.64 | 6.57 | 328.81 | 0.2127 | 906.0 | 711.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 14.61 | 83.95 | 5.88 | 325.65 | 0.1765 | 838.0 | 647.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
