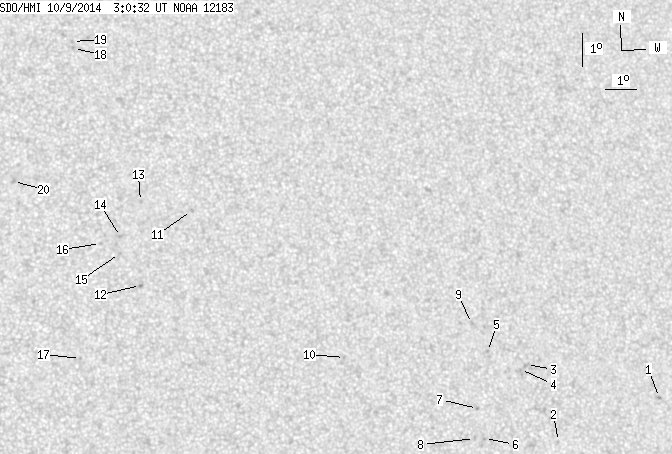

SDO HMI 2014-10-09 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.70 | 0.00 | 13.39 | 12.90 | 92.86 | 15.34 | 299.13 | 0.3014 | -53.0 | -26.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.63 | 9.41 | 104.20 | 26.69 | 278.45 | 0.4498 | -889.0 | -712.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 8.25 | 100.74 | 23.22 | 276.27 | 0.3942 | -748.0 | -563.9 | |
| 0.00 | 2.28 | 0.00 | 1.22 | 10.60 | 99.85 | 22.33 | 282.55 | 0.3843 | -591.0 | -562.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 10.46 | 99.64 | 22.12 | 282.27 | 0.3807 | -922.0 | -804.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 11.04 | 98.60 | 21.09 | 284.29 | 0.3660 | -761.0 | -587.0 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 8.44 | 98.33 | 20.81 | 277.21 | 0.3558 | -722.0 | -545.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 9.35 | 98.16 | 20.64 | 279.81 | 0.3546 | -895.0 | -734.6 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 8.45 | 98.01 | 20.49 | 277.32 | 0.3506 | -805.0 | -603.1 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 11.90 | 98.15 | 20.63 | 286.88 | 0.3619 | -695.0 | -563.0 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 11.03 | 93.99 | 16.47 | 287.34 | 0.2929 | -772.0 | -573.2 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 15.59 | 89.41 | 11.89 | 309.54 | 0.2585 | 724.0 | 599.6 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 13.36 | 87.69 | 10.17 | 305.97 | 0.2132 | 919.0 | 750.1 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 15.90 | 87.81 | 10.29 | 314.45 | 0.2418 | 800.0 | 635.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 14.85 | 87.13 | 9.61 | 312.97 | 0.2215 | 902.0 | 731.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 14.34 | 87.07 | 9.55 | 311.32 | 0.2151 | 792.0 | 617.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.65 | 86.49 | 8.97 | 314.18 | 0.2113 | 881.0 | 707.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 11.19 | 85.74 | 8.23 | 301.66 | 0.1656 | -715.0 | -566.8 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 20.62 | 85.93 | 8.41 | 331.16 | 0.2850 | 798.0 | 699.4 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 20.84 | 85.91 | 8.39 | 331.60 | 0.2880 | 789.0 | 590.5 | |
| 0.00 | 2.37 | 0.00 | 1.20 | 16.57 | 83.84 | 6.32 | 329.51 | 0.2088 | 851.0 | 668.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
