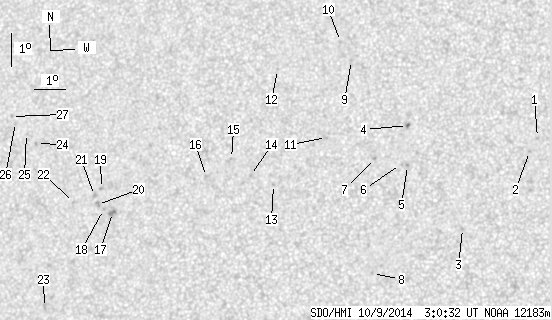

SDO HMI 2014-10-09 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 34.99 | 0.23 | 18.72 | 13.26 | 56.86 | -20.66 | 68.16 | 0.3700 | 41.8 | 158.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.62 | 14.62 | 67.05 | -10.46 | 50.18 | 0.2298 | -879.0 | -642.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 14.19 | 66.82 | -10.70 | 52.27 | 0.2285 | -949.0 | -758.5 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 11.82 | 64.83 | -12.69 | 65.27 | 0.2378 | -794.0 | -620.1 | |
| 0.44 | 1.58 | 0.23 | 0.82 | 14.89 | 62.91 | -14.60 | 57.90 | 0.2890 | -1018.0 | -782.5 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 13.68 | 62.99 | -14.53 | 61.56 | 0.2784 | -959.0 | -821.4 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 13.70 | 62.77 | -14.75 | 61.83 | 0.2819 | -718.0 | -587.0 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 13.86 | 61.93 | -15.59 | 62.53 | 0.2954 | -956.0 | -720.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 10.40 | 62.07 | -15.45 | 73.92 | 0.2740 | -706.0 | -630.8 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 16.81 | 60.95 | -16.57 | 55.60 | 0.3322 | -756.0 | -612.0 | |
| 0.00 | 1.40 | 0.00 | 0.74 | 17.38 | 60.54 | -16.98 | 54.76 | 0.3427 | -738.0 | -607.9 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 14.45 | 60.34 | -17.18 | 62.85 | 0.3229 | -843.0 | -625.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | 16.46 | 58.56 | -18.96 | 59.68 | 0.3626 | -655.0 | -532.2 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 12.98 | 58.73 | -18.78 | 68.73 | 0.3382 | 830.0 | 601.6 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 13.23 | 57.97 | -19.55 | 68.73 | 0.3512 | 819.0 | 733.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.72 | 57.30 | -20.22 | 67.98 | 0.3637 | 720.0 | 515.2 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 13.14 | 56.53 | -20.99 | 70.09 | 0.3726 | 638.0 | 542.1 | |
| 0.00 | 3.86 | 0.00 | 2.10 | 11.94 | 53.52 | -24.00 | 74.87 | 0.4140 | 1017.0 | 843.0 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 12.01 | 53.21 | -24.31 | 74.83 | 0.4190 | 701.0 | 585.5 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 12.64 | 53.08 | -24.44 | 73.42 | 0.4230 | 835.0 | 671.1 | |
| 0.00 | 2.46 | 0.00 | 1.34 | 12.16 | 52.99 | -24.53 | 74.60 | 0.4227 | 801.0 | 740.8 | |
| 0.00 | 2.11 | 0.00 | 1.15 | 12.42 | 52.86 | -24.66 | 74.04 | 0.4255 | 707.0 | 496.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 12.18 | 52.18 | -25.34 | 74.90 | 0.4352 | 661.0 | 555.5 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 8.99 | 51.48 | -26.04 | 82.38 | 0.4393 | 775.0 | 598.1 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 13.90 | 50.72 | -26.80 | 71.82 | 0.4626 | 724.0 | 631.1 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 14.18 | 50.33 | -27.19 | 71.41 | 0.4693 | 657.0 | 695.2 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 14.50 | 49.91 | -27.61 | 70.97 | 0.4766 | 729.0 | 484.7 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 14.67 | 49.74 | -27.77 | 70.70 | 0.4796 | 730.0 | 541.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
