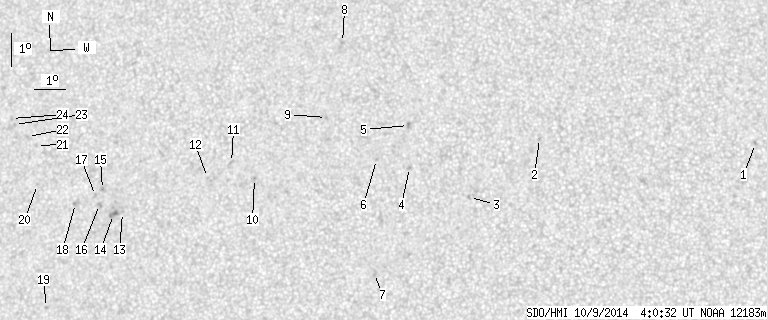

SDO HMI 2014-10-09 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 40.33 | 0.00 | 21.48 | 13.14 | 56.95 | -20.02 | 66.99 | 0.3612 | 158.8 | 152.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.79 | 14.54 | 73.80 | -3.17 | 20.40 | 0.1540 | -915.0 | -690.6 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.62 | 67.07 | -9.90 | 48.63 | 0.2226 | -900.0 | -680.6 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 12.80 | 64.96 | -12.01 | 60.32 | 0.2347 | -785.0 | -650.3 | |
| 0.00 | 1.93 | 0.00 | 0.99 | 13.66 | 63.02 | -13.95 | 60.71 | 0.2698 | -946.0 | -689.0 | |
| 0.00 | 2.54 | 0.00 | 1.31 | 14.93 | 62.91 | -14.06 | 56.85 | 0.2817 | -1004.0 | -814.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 13.87 | 61.95 | -15.02 | 61.67 | 0.2870 | -925.0 | -730.1 | |
| 0.00 | 2.37 | 0.00 | 1.22 | 10.44 | 62.08 | -14.89 | 73.25 | 0.2650 | -710.0 | -650.9 | |
| 0.00 | 1.75 | 0.00 | 0.92 | 17.39 | 60.58 | -16.39 | 53.84 | 0.3350 | -832.0 | -622.8 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 15.10 | 60.26 | -16.71 | 60.42 | 0.3207 | -770.0 | -621.4 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 13.18 | 58.07 | -18.90 | 68.26 | 0.3410 | 900.0 | 749.4 | |
| 0.00 | 1.84 | 0.00 | 0.98 | 13.64 | 57.28 | -19.69 | 67.72 | 0.3553 | 634.0 | 583.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 13.16 | 56.54 | -20.43 | 69.61 | 0.3642 | 746.0 | 639.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 12.00 | 53.83 | -23.14 | 74.29 | 0.4010 | 768.0 | 345.9 | |
| 0.00 | 4.82 | 0.00 | 2.61 | 11.92 | 53.54 | -23.43 | 74.62 | 0.4053 | 983.0 | 797.6 | |
| 0.00 | 1.75 | 0.00 | 0.95 | 12.66 | 53.10 | -23.87 | 73.08 | 0.4145 | 852.0 | 659.0 | |
| 0.00 | 2.63 | 0.00 | 1.43 | 12.21 | 53.04 | -23.93 | 74.18 | 0.4138 | 827.0 | 681.7 | |
| 0.00 | 1.67 | 0.00 | 0.91 | 12.47 | 52.88 | -24.09 | 73.64 | 0.4171 | 765.0 | 589.6 | |
| 0.00 | 2.11 | 0.00 | 1.15 | 12.20 | 52.23 | -24.74 | 74.58 | 0.4261 | 742.0 | 560.6 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 9.04 | 51.53 | -25.44 | 82.15 | 0.4300 | 792.0 | 649.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 12.71 | 50.89 | -26.08 | 74.02 | 0.4480 | 525.0 | 458.2 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 13.89 | 50.72 | -26.25 | 71.56 | 0.4545 | 740.0 | 580.6 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 14.14 | 50.38 | -26.59 | 71.18 | 0.4605 | 767.0 | 578.4 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 14.48 | 49.88 | -27.09 | 70.72 | 0.4690 | 836.0 | 759.7 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 14.66 | 49.76 | -27.21 | 70.42 | 0.4715 | 720.0 | 531.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
