SDO HMI 2014-10-09 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.92 | 35.70 | 6.50 | 19.51 | -12.77 | 60.77 | -16.20 | 139.84 | 0.4237 | 507.7 | 123.1 | |
|
previous
or next observation for the same group /

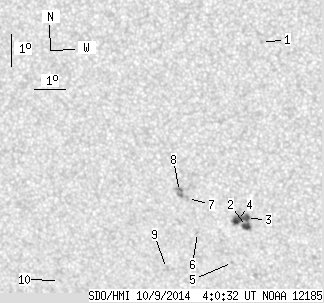

back to the solar disc SDO HMI 2014-10-09 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.60 | -7.26 | 62.50 | -14.47 | 132.96 | 0.3401 | -879.0 | -560.6 | |
| 3.68 | 20.09 | 2.01 | 10.93 | -13.03 | 61.75 | -15.22 | 141.96 | 0.4169 | 1011.2 | 767.0 | |
| 3.42 | -2.00 | 1.86 | -2.00 | -12.77 | 61.76 | -15.21 | 141.60 | 0.4136 | 1181.7 | 999999 | |
| 4.82 | -2.00 | 2.63 | -2.00 | -12.84 | 61.47 | -15.50 | 141.18 | 0.4174 | 962.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -14.19 | 61.22 | -15.75 | 142.73 | 0.4364 | 697.0 | 549.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.26 | 60.16 | -16.81 | 139.55 | 0.4356 | 690.0 | 511.8 | |
| 0.00 | 1.67 | 0.00 | 0.91 | -12.20 | 59.92 | -17.05 | 137.45 | 0.4257 | -964.0 | -705.9 | |
| 0.00 | 6.40 | 0.00 | 3.50 | -11.98 | 59.67 | -17.30 | 136.70 | 0.4259 | -835.0 | -771.5 | |
| 0.00 | 3.07 | 0.00 | 1.71 | -14.45 | 59.07 | -17.90 | 139.53 | 0.4606 | 703.0 | 547.5 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -14.97 | 55.49 | -21.48 | 135.12 | 0.5033 | 681.0 | 455.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
