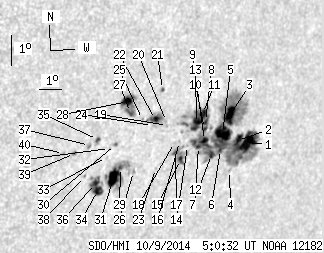

SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 147.54 | 420.58 | 114.07 | 325.45 | -15.13 | 122.22 | 45.80 | 244.25 | 0.7700 | 297.8 | 221.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.14 | 278.80 | 21.28 | 220.93 | -15.44 | 124.67 | 48.25 | 245.03 | 0.7955 | 621.7 | 378.4 | |
| 7.63 | -1.00 | 6.15 | -1.00 | -15.34 | 124.22 | 47.80 | 244.95 | 0.7908 | 815.7 | 999999 | |
| 12.98 | -1.00 | 10.27 | -1.00 | -14.49 | 123.60 | 47.18 | 245.69 | 0.7815 | 864.9 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.07 | -16.29 | 124.14 | 47.72 | 243.79 | 0.7938 | 416.0 | 307.9 | |
| 18.42 | -1.00 | 14.58 | -1.00 | -15.05 | 123.44 | 47.02 | 244.95 | 0.7821 | 942.8 | 999999 | |
| 1.40 | -1.00 | 1.12 | -1.00 | -15.57 | 123.50 | 47.08 | 244.36 | 0.7847 | 128.7 | 999999 | |
| 3.51 | -1.00 | 2.77 | -1.00 | -15.70 | 123.13 | 46.71 | 244.04 | 0.7816 | 473.4 | 999999 | |
| 2.63 | -1.00 | 2.04 | -1.00 | -14.59 | 122.54 | 46.12 | 245.10 | 0.7713 | 817.7 | 999999 | |
| 3.07 | -1.00 | 2.40 | -1.00 | -15.21 | 122.67 | 46.25 | 244.41 | 0.7751 | 1015.7 | 999999 | |
| 1.67 | -1.00 | 1.29 | -1.00 | -14.82 | 122.56 | 46.14 | 244.83 | 0.7724 | 846.9 | 999999 | |
| 7.98 | -1.00 | 6.15 | -1.00 | -14.32 | 122.34 | 45.91 | 245.33 | 0.7682 | 923.9 | 999999 | |
| 1.75 | -1.00 | 1.37 | -1.00 | -15.38 | 122.45 | 46.03 | 244.10 | 0.7736 | 65.9 | 999999 | |
| 9.83 | -1.00 | 7.56 | -1.00 | -14.62 | 122.15 | 45.73 | 244.88 | 0.7675 | 895.6 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -15.31 | 121.93 | 45.51 | 243.95 | 0.7682 | 627.0 | 568.2 | |
| 3.33 | 17.19 | 2.57 | 13.22 | -15.74 | 121.75 | 45.32 | 243.33 | 0.7682 | -199.3 | 322.9 | |
| 0.00 | 0.79 | 0.00 | 0.60 | -15.15 | 121.54 | 45.11 | 243.95 | 0.7635 | 763.0 | 690.0 | |
| 1.67 | -15.00 | 1.27 | -15.00 | -15.49 | 121.45 | 45.03 | 243.49 | 0.7642 | 660.7 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -15.16 | 121.32 | 44.90 | 243.83 | 0.7614 | 421.0 | 401.3 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -14.58 | 120.86 | 44.44 | 244.31 | 0.7542 | 550.0 | 500.8 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -14.45 | 120.78 | 44.36 | 244.44 | 0.7528 | 248.0 | 271.4 | |
| 0.61 | 1.67 | 0.45 | 1.23 | -13.40 | 120.36 | 43.94 | 245.54 | 0.7438 | 614.0 | 546.8 | |
| 4.47 | 12.37 | 3.32 | 9.18 | -14.35 | 120.28 | 43.86 | 244.32 | 0.7471 | -457.2 | 5.1 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -15.94 | 120.70 | 44.28 | 242.57 | 0.7586 | -475.0 | -358.6 | |
| 0.00 | 1.23 | 0.00 | 0.91 | -14.53 | 120.20 | 43.78 | 244.05 | 0.7471 | 187.0 | 118.9 | |
| 0.00 | 0.79 | 0.00 | 0.58 | -14.30 | 119.71 | 43.29 | 244.10 | 0.7410 | -160.0 | -273.2 | |
| 0.00 | 1.84 | 0.00 | 1.37 | -15.96 | 119.75 | 43.33 | 242.06 | 0.7491 | -50.0 | -85.9 | |
| 2.90 | 23.60 | 2.10 | 17.08 | -14.03 | 119.14 | 42.72 | 244.14 | 0.7337 | 516.3 | 13.6 | |
| 7.98 | -27.00 | 5.76 | -27.00 | -13.67 | 118.93 | 42.51 | 244.49 | 0.7298 | -614.9 | 999999 | |
| 1.14 | 41.93 | 0.84 | 30.90 | -15.79 | 119.15 | 42.73 | 241.96 | 0.7421 | -552.5 | -185.9 | |
| 0.53 | 1.67 | 0.38 | 1.21 | -15.02 | 118.74 | 42.32 | 242.69 | 0.7342 | -498.7 | -395.2 | |
| 14.04 | -29.00 | 10.32 | -29.00 | -16.09 | 118.93 | 42.51 | 241.46 | 0.7413 | -765.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.89 | -15.13 | 118.52 | 42.10 | 242.43 | 0.7323 | -474.0 | -446.6 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -15.41 | 118.46 | 42.04 | 242.05 | 0.7331 | -253.0 | -298.3 | |
| 6.93 | 20.79 | 5.06 | 15.15 | -16.47 | 118.35 | 41.93 | 240.69 | 0.7373 | -732.5 | -682.3 | |
| 1.14 | 3.33 | 0.82 | 2.39 | -14.80 | 117.94 | 41.52 | 242.53 | 0.7246 | -652.5 | -546.9 | |
| 5.26 | -34.00 | 3.83 | -34.00 | -16.23 | 118.21 | 41.79 | 240.90 | 0.7346 | -888.3 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.88 | -14.97 | 117.65 | 41.22 | 242.16 | 0.7223 | -594.0 | -568.4 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -15.96 | 117.68 | 41.26 | 240.93 | 0.7277 | -714.0 | -670.5 | |
| 0.53 | 2.02 | 0.37 | 1.43 | -15.18 | 117.08 | 40.66 | 241.57 | 0.7173 | -781.8 | -654.1 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -15.15 | 116.62 | 40.20 | 241.35 | 0.7123 | -709.0 | -653.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
