SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.96 | 0.00 | 9.86 | 12.71 | 91.22 | 14.79 | 300.21 | 0.2877 | -41.6 | -22.8 | |
|
previous
or next observation for the same group /

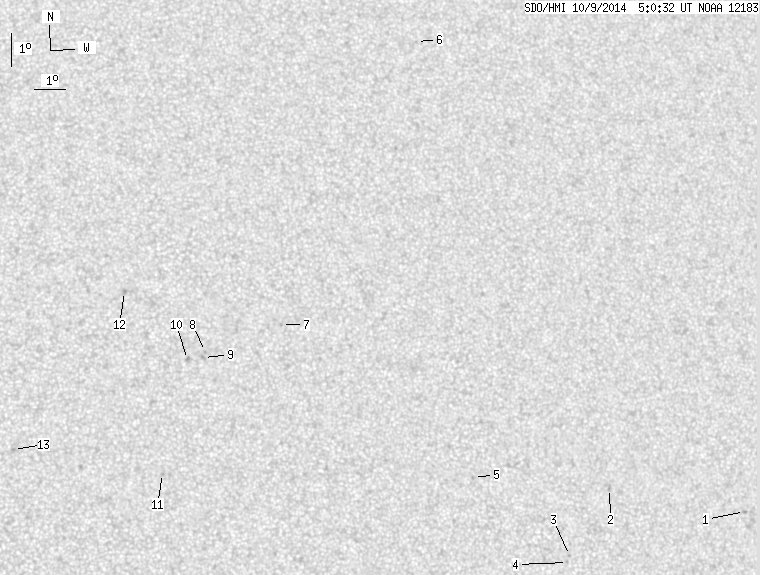

back to the solar disc SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.88 | 9.40 | 104.24 | 27.82 | 278.26 | 0.4671 | -867.0 | -674.8 | |
| 0.00 | 1.84 | 0.00 | 0.99 | 10.30 | 99.76 | 23.34 | 281.45 | 0.3994 | -884.0 | -722.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 8.35 | 98.31 | 21.88 | 276.80 | 0.3730 | -812.0 | -620.3 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 8.15 | 98.23 | 21.81 | 276.25 | 0.3715 | -782.0 | -586.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 10.81 | 95.35 | 18.93 | 284.90 | 0.3312 | -775.0 | -634.3 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 24.20 | 94.90 | 18.48 | 317.24 | 0.4278 | 742.0 | 608.2 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 15.61 | 89.53 | 13.10 | 307.05 | 0.2748 | 821.0 | 666.5 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 14.85 | 87.07 | 10.65 | 310.17 | 0.2348 | 860.0 | 800.6 | |
| 0.00 | 2.28 | 0.00 | 1.16 | 14.67 | 87.00 | 10.58 | 309.75 | 0.2320 | 950.0 | 712.2 | |
| 0.00 | 2.11 | 0.00 | 1.07 | 14.62 | 86.49 | 10.07 | 310.91 | 0.2249 | 977.0 | 682.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.20 | 85.58 | 9.15 | 299.15 | 0.1795 | -789.0 | -627.4 | |
| 0.00 | 2.02 | 0.00 | 1.03 | 16.72 | 84.60 | 8.18 | 323.20 | 0.2286 | 973.0 | 796.3 | |
| 0.00 | 1.84 | 0.00 | 0.92 | 11.98 | 81.01 | 4.58 | 321.89 | 0.1273 | -955.0 | -677.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
