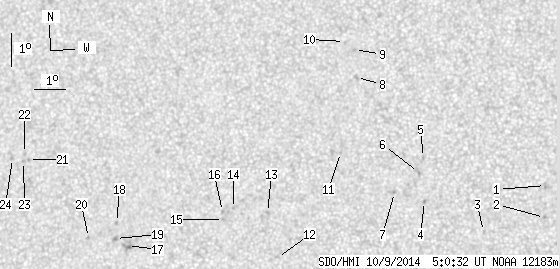

SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 35.91 | 0.00 | 19.05 | 13.81 | 57.03 | -19.39 | 65.43 | 0.3543 | 19.4 | 152.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.80 | 14.23 | 66.82 | -9.60 | 49.16 | 0.2146 | -742.0 | -714.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 13.26 | 66.83 | -9.59 | 52.83 | 0.2045 | -928.0 | -769.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.80 | 64.94 | -11.48 | 59.20 | 0.2270 | -870.0 | -678.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 13.67 | 63.04 | -13.38 | 59.70 | 0.2616 | -989.0 | -842.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 15.00 | 62.93 | -13.49 | 55.58 | 0.2744 | -957.0 | -731.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 14.54 | 62.80 | -13.62 | 57.26 | 0.2723 | -923.0 | -776.1 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 13.92 | 62.07 | -14.35 | 60.49 | 0.2777 | -840.0 | -754.7 | |
| 0.00 | 2.37 | 0.00 | 1.24 | 17.37 | 60.59 | -15.83 | 52.99 | 0.3275 | -919.0 | -659.5 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 18.22 | 60.45 | -15.97 | 51.10 | 0.3374 | -716.0 | -592.5 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 18.46 | 60.10 | -16.32 | 51.10 | 0.3441 | -545.0 | -505.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 15.08 | 60.26 | -16.16 | 59.69 | 0.3127 | -748.0 | -593.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 11.85 | 58.46 | -17.96 | 71.28 | 0.3200 | 465.0 | 413.4 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 13.19 | 58.04 | -18.38 | 67.72 | 0.3332 | 855.0 | 692.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 13.28 | 56.93 | -19.49 | 68.50 | 0.3506 | 800.0 | 673.5 | |
| 0.00 | 1.75 | 0.00 | 0.93 | 12.94 | 56.63 | -19.79 | 69.69 | 0.3534 | 845.0 | 661.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 13.18 | 56.58 | -19.84 | 69.08 | 0.3554 | 776.0 | 666.4 | |
| 0.00 | 5.53 | 0.00 | 2.98 | 12.03 | 53.55 | -22.88 | 74.05 | 0.3971 | 688.0 | 772.2 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 12.71 | 53.12 | -23.31 | 72.64 | 0.4061 | 796.0 | 670.2 | |
| 0.00 | 2.11 | 0.00 | 1.14 | 12.23 | 53.13 | -23.29 | 73.80 | 0.4042 | 871.0 | 772.5 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 12.22 | 52.22 | -24.20 | 74.27 | 0.4180 | 755.0 | 614.8 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 14.48 | 49.93 | -26.50 | 70.42 | 0.4604 | 870.0 | 736.8 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 14.65 | 49.77 | -26.66 | 70.14 | 0.4634 | 756.0 | 549.0 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 14.41 | 49.76 | -26.66 | 70.65 | 0.4625 | 783.0 | 657.1 | |
| 0.00 | 1.58 | 0.00 | 0.88 | 14.48 | 49.37 | -27.05 | 70.70 | 0.4685 | 382.0 | 371.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
