SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 36.40 | 0.00 | 20.39 | -19.98 | 74.08 | -2.35 | 177.44 | 0.4591 | 360.5 | 190.0 | |
|
previous
or next observation for the same group /

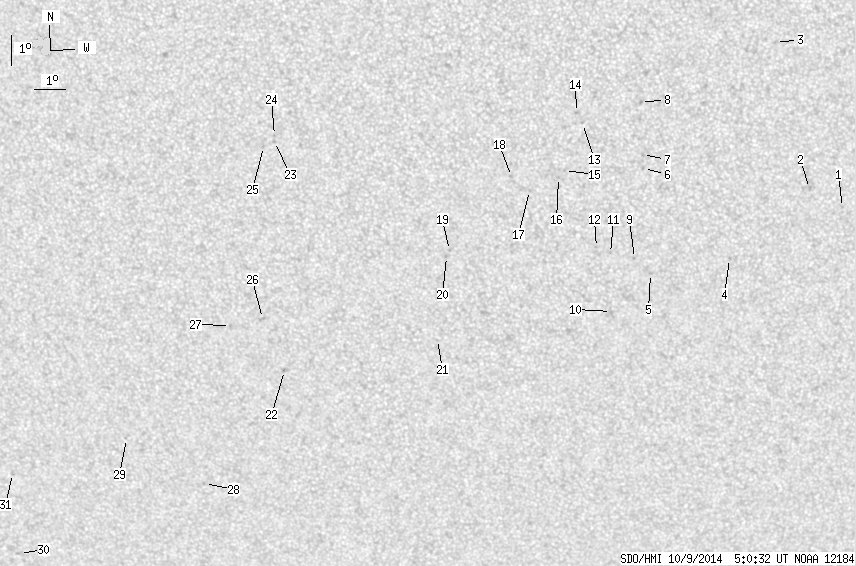

back to the solar disc SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.48 | -18.04 | 86.73 | 10.31 | 202.53 | 0.4459 | -839.0 | -643.3 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -17.39 | 85.64 | 9.22 | 200.91 | 0.4302 | 715.0 | 628.6 | |
| 0.00 | 1.40 | 0.00 | 0.74 | -12.67 | 84.39 | 7.96 | 202.66 | 0.3524 | 831.0 | 542.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -19.66 | 83.19 | 6.77 | 194.26 | 0.4525 | 717.0 | 569.4 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -20.13 | 80.68 | 4.26 | 188.91 | 0.4518 | 736.0 | 586.5 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -16.66 | 80.38 | 3.96 | 189.63 | 0.3968 | 804.0 | 584.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -16.20 | 80.34 | 3.92 | 189.74 | 0.3895 | 874.0 | 691.5 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -14.53 | 80.25 | 3.83 | 190.31 | 0.3624 | 932.0 | 693.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -19.62 | 80.16 | 3.74 | 188.00 | 0.4428 | 755.0 | 551.5 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -21.40 | 79.46 | 3.04 | 186.06 | 0.4689 | 560.0 | 442.4 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -19.45 | 79.39 | 2.97 | 186.42 | 0.4386 | 732.0 | 577.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -19.25 | 78.94 | 2.52 | 185.50 | 0.4347 | 802.0 | 671.5 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -15.19 | 78.46 | 2.03 | 185.35 | 0.3692 | 736.0 | 605.3 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -14.83 | 78.27 | 1.85 | 184.94 | 0.3631 | 742.0 | 646.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -16.71 | 77.91 | 1.48 | 183.64 | 0.3930 | 809.0 | 606.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -16.94 | 77.72 | 1.30 | 183.15 | 0.3965 | 837.0 | 734.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -17.36 | 76.81 | 0.39 | 180.93 | 0.4028 | 692.0 | 492.0 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -16.90 | 76.25 | -0.17 | 179.58 | 0.3954 | 679.0 | 551.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -19.34 | 74.28 | -2.15 | 175.33 | 0.4356 | 759.0 | 558.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -19.54 | 74.18 | -2.25 | 175.15 | 0.4389 | 689.0 | 593.5 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -22.34 | 73.84 | -2.58 | 175.03 | 0.4827 | 349.0 | 252.2 | |
| 0.00 | 1.58 | 0.00 | 0.91 | -23.45 | 68.80 | -7.62 | 166.19 | 0.5118 | -934.0 | -728.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.81 | 68.85 | -7.57 | 161.33 | 0.3977 | 765.0 | 566.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -15.62 | 68.86 | -7.56 | 161.19 | 0.3948 | 791.0 | 638.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.98 | 68.50 | -7.92 | 160.67 | 0.4021 | 753.0 | 600.1 | |
| 0.00 | 2.54 | 0.00 | 1.44 | -21.68 | 68.18 | -8.24 | 164.11 | 0.4884 | -822.0 | -658.7 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -21.93 | 67.12 | -9.30 | 162.36 | 0.4967 | -795.0 | -668.8 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -27.49 | 65.79 | -10.63 | 163.55 | 0.5801 | -670.0 | -451.7 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -25.94 | 63.28 | -13.14 | 158.93 | 0.5708 | -481.0 | -426.4 | |
| 0.00 | 1.93 | 0.00 | 1.25 | -30.25 | 58.87 | -17.55 | 156.21 | 0.6480 | -689.0 | -410.6 | |
| 0.00 | 1.84 | 0.00 | 1.15 | -27.31 | 59.13 | -17.29 | 154.31 | 0.6114 | -654.0 | -625.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
