SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.29 | 293.19 | 51.05 | 316.46 | -20.66 | 18.74 | -57.68 | 117.15 | 0.8906 | 703.8 | 157.9 | |
|
previous
or next observation for the same group /

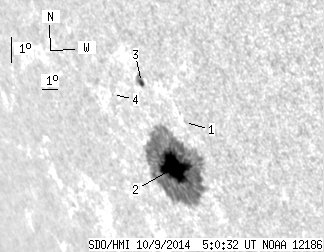

back to the solar disc SDO HMI 2014-10-09 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.98 | -19.11 | 20.25 | -56.17 | 116.01 | 0.8754 | 507.0 | 444.2 | |
| 44.83 | 285.12 | 48.44 | 307.89 | -20.73 | 18.75 | -57.67 | 117.23 | 0.8907 | 777.1 | 168.4 | |
| 2.46 | 6.84 | 2.61 | 7.29 | -18.00 | 18.32 | -58.11 | 114.15 | 0.8869 | -170.0 | -451.1 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -18.59 | 16.18 | -60.24 | 114.12 | 0.9033 | -370.0 | -370.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
