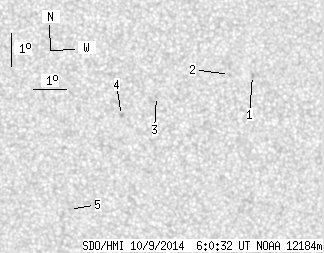

SDO HMI 2014-10-09 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.77 | 0.00 | 3.44 | -7.01 | 75.63 | -0.25 | 179.66 | 0.2332 | -149.6 | -60.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.85 | -6.01 | 78.01 | 2.13 | 189.88 | 0.2170 | 1109.0 | 906.6 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -5.98 | 77.32 | 1.44 | 186.72 | 0.2147 | 748.0 | 485.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -6.65 | 75.12 | -0.76 | 176.64 | 0.2251 | -859.0 | -539.8 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -7.24 | 74.06 | -1.82 | 172.34 | 0.2368 | -1000.0 | -825.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.16 | 72.46 | -3.42 | 168.27 | 0.2901 | -746.0 | -597.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
