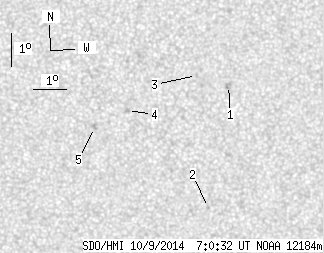

SDO HMI 2014-10-09 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.96 | 0.00 | 5.58 | -6.75 | 76.39 | 1.06 | 184.81 | 0.2288 | 139.0 | 90.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.68 | 0.00 | 1.87 | -5.99 | 78.10 | 2.77 | 192.75 | 0.2186 | 854.0 | 711.8 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -9.76 | 77.51 | 2.18 | 187.74 | 0.2798 | 802.0 | 558.0 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -5.68 | 77.13 | 1.80 | 188.61 | 0.2103 | 862.0 | 673.3 | |
| 0.00 | 2.19 | 0.00 | 1.12 | -6.75 | 75.05 | -0.27 | 178.79 | 0.2263 | -850.0 | -669.7 | |
| 0.00 | 2.46 | 0.00 | 1.25 | -7.27 | 74.06 | -1.27 | 174.63 | 0.2362 | -973.0 | -737.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
