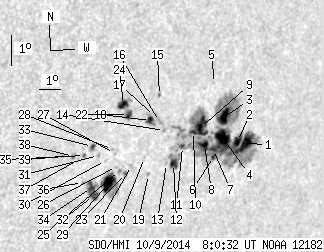

SDO HMI 2014-10-09 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.92 | 420.76 | 107.59 | 337.54 | -15.19 | 122.44 | 47.66 | 245.05 | 0.7885 | 258.4 | 261.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.11 | 313.78 | 14.48 | 256.93 | -15.43 | 124.93 | 50.15 | 245.85 | 0.8133 | 619.1 | 378.1 | |
| 6.40 | -1.00 | 5.37 | -1.00 | -15.33 | 124.51 | 49.73 | 245.80 | 0.8090 | 884.0 | 999999 | |
| 10.97 | -1.00 | 8.96 | -1.00 | -14.45 | 123.62 | 48.84 | 246.46 | 0.7975 | 901.1 | 999999 | |
| 18.51 | -1.00 | 15.26 | -1.00 | -15.17 | 123.79 | 49.01 | 245.69 | 0.8017 | 934.2 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.49 | -13.34 | 122.84 | 48.06 | 247.46 | 0.7859 | 424.0 | 407.9 | |
| 1.75 | -1.00 | 1.44 | -1.00 | -15.72 | 123.49 | 48.71 | 244.92 | 0.8008 | 618.6 | 999999 | |
| 2.54 | -1.00 | 2.09 | -1.00 | -15.49 | 123.42 | 48.64 | 245.15 | 0.7993 | 413.8 | 999999 | |
| 6.32 | -1.00 | 5.12 | -1.00 | -15.32 | 122.94 | 48.16 | 245.15 | 0.7941 | 834.5 | 999999 | |
| 16.14 | -1.00 | 12.94 | -1.00 | -14.68 | 122.61 | 47.83 | 245.76 | 0.7886 | 970.5 | 999999 | |
| 3.33 | -1.00 | 2.66 | -1.00 | -14.81 | 122.28 | 47.50 | 245.46 | 0.7858 | 860.9 | 999999 | |
| 1.93 | -1.00 | 1.53 | -1.00 | -15.26 | 121.91 | 47.12 | 244.76 | 0.7839 | 893.6 | 999999 | |
| 5.97 | -1.00 | 4.74 | -1.00 | -15.78 | 121.65 | 46.87 | 244.02 | 0.7835 | -208.1 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.76 | -15.76 | 121.32 | 46.54 | 243.90 | 0.7802 | 371.0 | 330.7 | |
| 0.00 | 1.23 | 0.00 | 0.95 | -14.67 | 120.92 | 46.14 | 245.03 | 0.7718 | 735.0 | 618.2 | |
| 0.00 | 1.23 | 0.00 | 0.93 | -13.52 | 120.40 | 45.62 | 246.20 | 0.7618 | 532.0 | 367.0 | |
| 0.00 | 3.68 | 0.00 | 2.84 | -14.36 | 120.61 | 45.83 | 245.26 | 0.7674 | 258.0 | 223.8 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -14.18 | 120.34 | 45.56 | 245.36 | 0.7639 | 198.0 | 108.0 | |
| 3.77 | 7.89 | 2.88 | 6.02 | -14.29 | 120.20 | 45.41 | 245.15 | 0.7629 | -469.7 | -99.0 | |
| 0.00 | 1.05 | 0.00 | 0.82 | -16.05 | 120.59 | 45.81 | 243.21 | 0.7743 | -328.0 | -268.5 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -15.48 | 120.25 | 45.47 | 243.74 | 0.7684 | -488.0 | -379.3 | |
| 0.00 | 1.58 | 0.00 | 1.21 | -15.69 | 119.73 | 44.95 | 243.23 | 0.7642 | 237.0 | 136.4 | |
| 3.77 | 16.93 | 2.82 | 12.59 | -14.02 | 119.16 | 44.38 | 245.00 | 0.7511 | 434.3 | -154.6 | |
| 0.70 | 2.54 | 0.54 | 1.94 | -15.93 | 119.54 | 44.76 | 242.84 | 0.7632 | -290.9 | -126.0 | |
| 6.32 | -22.00 | 4.68 | -22.00 | -13.68 | 118.87 | 44.08 | 245.28 | 0.7465 | -723.8 | 999999 | |
| 0.35 | 2.11 | 0.27 | 1.60 | -15.81 | 119.24 | 44.46 | 242.84 | 0.7597 | -484.8 | -292.6 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -15.67 | 119.07 | 44.29 | 242.93 | 0.7574 | -310.0 | -348.7 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -15.24 | 118.87 | 44.08 | 243.35 | 0.7534 | -279.0 | -358.4 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -15.10 | 118.74 | 43.96 | 243.46 | 0.7515 | -574.0 | -473.7 | |
| 15.26 | 32.19 | 11.54 | 24.39 | -16.20 | 118.87 | 44.09 | 242.18 | 0.7577 | -753.9 | -40.2 | |
| 0.00 | 0.96 | 0.00 | 0.72 | -15.43 | 118.53 | 43.75 | 242.94 | 0.7508 | -584.0 | -470.2 | |
| 0.00 | 1.49 | 0.00 | 1.11 | -15.24 | 118.18 | 43.40 | 242.99 | 0.7463 | -601.0 | -497.2 | |
| 5.35 | 17.98 | 4.02 | 13.47 | -16.54 | 118.31 | 43.53 | 241.48 | 0.7538 | -696.2 | -665.7 | |
| 1.67 | 3.25 | 1.23 | 2.39 | -14.93 | 117.84 | 43.06 | 243.21 | 0.7414 | -670.5 | -584.2 | |
| 5.79 | -32.00 | 4.32 | -32.00 | -16.27 | 118.15 | 43.37 | 241.72 | 0.7508 | -850.1 | 999999 | |
| 0.44 | 1.32 | 0.32 | 0.97 | -15.20 | 117.57 | 42.79 | 242.73 | 0.7398 | -613.8 | -604.2 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -16.07 | 117.71 | 42.93 | 241.73 | 0.7454 | -470.0 | -611.9 | |
| 0.00 | 0.96 | 0.00 | 0.71 | -15.31 | 117.34 | 42.56 | 242.48 | 0.7379 | -565.0 | -514.5 | |
| 0.53 | 2.37 | 0.38 | 1.72 | -15.19 | 117.10 | 42.32 | 242.49 | 0.7349 | -789.3 | -683.1 | |
| 0.00 | 1.23 | 0.00 | 0.89 | -15.16 | 116.67 | 41.89 | 242.30 | 0.7302 | -707.0 | -564.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
