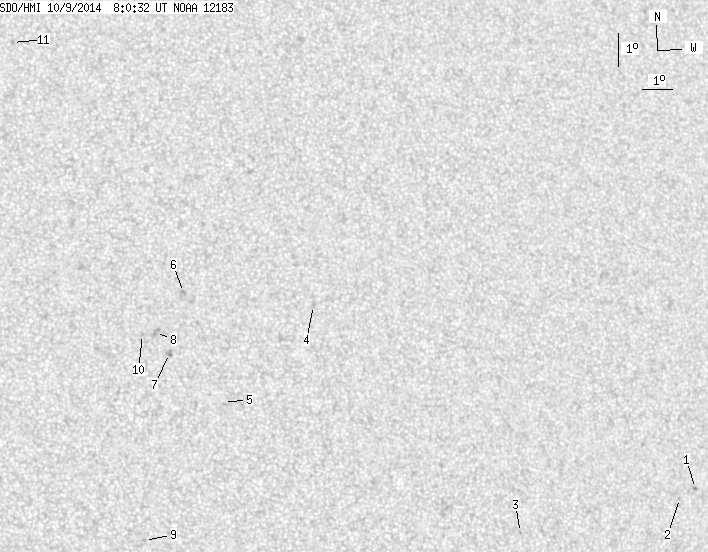

SDO HMI 2014-10-09 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.70 | 0.00 | 9.76 | 14.09 | 89.92 | 15.14 | 300.85 | 0.3023 | 201.8 | 357.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.70 | 9.35 | 104.29 | 29.51 | 277.95 | 0.4927 | -801.0 | -641.8 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 9.09 | 103.71 | 28.93 | 277.47 | 0.4837 | -778.0 | -654.4 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 8.33 | 98.27 | 23.49 | 276.50 | 0.3987 | -791.0 | -677.1 | |
| 0.00 | 2.02 | 0.00 | 1.06 | 15.41 | 92.06 | 17.28 | 299.76 | 0.3313 | 681.0 | 549.8 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 12.57 | 88.97 | 14.19 | 295.30 | 0.2658 | 534.0 | 571.0 | |
| 0.00 | 2.02 | 0.00 | 1.04 | 15.93 | 87.91 | 13.13 | 308.00 | 0.2783 | 876.0 | 700.6 | |
| 0.00 | 3.16 | 0.00 | 1.62 | 14.09 | 87.35 | 12.57 | 303.32 | 0.2537 | 924.0 | 807.8 | |
| 0.00 | 4.39 | 0.00 | 2.25 | 14.74 | 86.94 | 12.16 | 306.31 | 0.2539 | 951.0 | 678.6 | |
| 0.00 | 1.32 | 0.00 | 0.67 | 8.49 | 86.32 | 11.54 | 281.71 | 0.2029 | -881.0 | -658.1 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 14.69 | 86.53 | 11.74 | 307.05 | 0.2478 | 810.0 | 713.8 | |
| 0.00 | 1.49 | 0.00 | 0.78 | 23.75 | 82.89 | 8.11 | 336.80 | 0.3293 | 695.0 | 481.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
