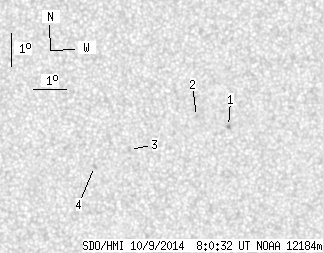

SDO HMI 2014-10-09 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.11 | 0.00 | 3.61 | -6.49 | 75.91 | 1.13 | 185.28 | 0.2245 | 79.0 | 1.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.75 | 0.00 | 0.89 | -6.00 | 78.09 | 3.31 | 195.14 | 0.2209 | 1165.0 | 954.8 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -5.69 | 77.13 | 2.35 | 191.13 | 0.2120 | 1023.0 | 809.6 | |
| 0.00 | 1.93 | 0.00 | 0.98 | -6.69 | 75.11 | 0.33 | 181.46 | 0.2253 | -954.0 | -694.5 | |
| 0.00 | 2.11 | 0.00 | 1.07 | -7.21 | 74.05 | -0.73 | 176.90 | 0.2345 | -918.0 | -656.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
