SDO HMI 2014-10-09 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.63 | 33.15 | 6.80 | 18.10 | -13.49 | 59.86 | -14.92 | 143.45 | 0.4197 | 405.9 | 101.1 | |
|
previous
or next observation for the same group /

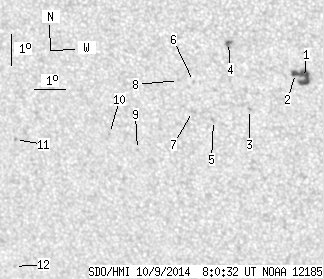

back to the solar disc SDO HMI 2014-10-09 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.12 | 16.75 | 4.91 | 9.02 | -12.98 | 61.97 | -12.81 | 146.54 | 0.3936 | 1078.8 | 800.4 | |
| 2.28 | -1.00 | 1.23 | -1.00 | -12.86 | 61.69 | -13.09 | 145.80 | 0.3945 | 887.0 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.05 | 60.16 | -14.62 | 144.53 | 0.4238 | 879.0 | 691.2 | |
| 1.23 | 4.56 | 0.66 | 2.47 | -11.94 | 59.63 | -15.15 | 140.35 | 0.4026 | -970.9 | -772.1 | |
| 0.00 | 2.11 | 0.00 | 1.16 | -14.43 | 58.98 | -15.80 | 142.96 | 0.4396 | 712.0 | 493.4 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.21 | 58.43 | -16.35 | 140.20 | 0.4301 | -772.0 | -624.4 | |
| 0.00 | 2.63 | 0.00 | 1.45 | -14.16 | 58.33 | -16.46 | 141.45 | 0.4426 | -695.0 | -516.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.19 | 57.95 | -16.83 | 139.36 | 0.4347 | -704.0 | -610.3 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -15.45 | 56.43 | -18.35 | 140.23 | 0.4763 | 594.0 | 415.5 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -14.96 | 55.56 | -19.22 | 138.24 | 0.4795 | 660.0 | 547.8 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -15.28 | 52.40 | -22.38 | 134.37 | 0.5159 | -750.0 | -603.7 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -19.45 | 51.81 | -22.97 | 139.17 | 0.5649 | 743.0 | 594.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
