SDO HMI 2014-10-09 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.07 | 0.00 | 9.44 | -17.24 | 102.60 | 28.36 | 228.08 | 0.6070 | 114.4 | 46.3 | |
|
previous
or next observation for the same group /

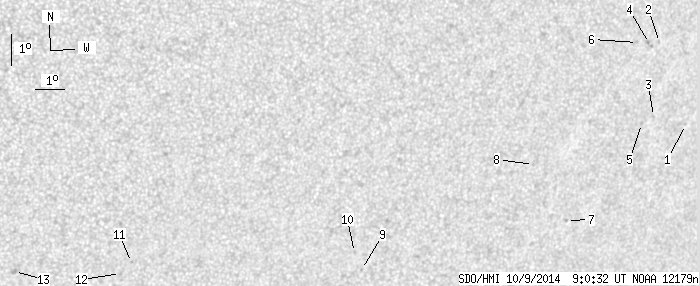

back to the solar disc SDO HMI 2014-10-09 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.42 | -16.10 | 111.96 | 37.72 | 238.61 | 0.6909 | 570.0 | 470.6 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -13.38 | 110.41 | 36.17 | 241.20 | 0.6575 | 493.0 | 453.0 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -15.75 | 110.63 | 36.39 | 238.18 | 0.6744 | 639.0 | 579.8 | |
| 0.00 | 2.28 | 0.00 | 1.49 | -13.38 | 110.02 | 35.79 | 240.94 | 0.6532 | 713.0 | 677.7 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -15.95 | 110.20 | 35.97 | 237.63 | 0.6710 | 736.0 | 611.8 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -13.32 | 109.56 | 35.32 | 240.71 | 0.6474 | 634.0 | 456.2 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -18.96 | 107.99 | 33.75 | 232.12 | 0.6680 | 642.0 | 576.1 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -17.02 | 106.34 | 32.10 | 233.26 | 0.6364 | 303.0 | 316.6 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -20.15 | 100.68 | 26.44 | 223.92 | 0.6049 | -583.0 | -543.6 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -19.57 | 100.33 | 26.09 | 224.26 | 0.5960 | -693.0 | -555.8 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -19.55 | 92.65 | 18.42 | 214.69 | 0.5252 | -671.0 | -530.8 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -19.91 | 92.32 | 18.09 | 213.81 | 0.5267 | -537.0 | -561.9 | |
| 0.00 | 2.81 | 0.00 | 1.60 | -19.72 | 88.79 | 14.55 | 208.55 | 0.4970 | -759.0 | -682.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
