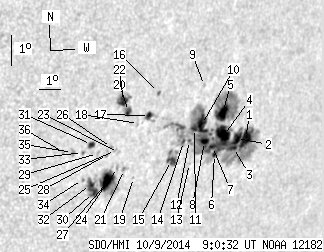

SDO HMI 2014-10-09 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 122.97 | 422.87 | 99.29 | 343.18 | -15.18 | 122.49 | 48.25 | 245.32 | 0.7941 | 265.5 | 227.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.49 | 302.08 | 9.87 | 250.93 | -15.39 | 125.01 | 50.77 | 246.15 | 0.8188 | 574.8 | 370.3 | |
| 7.63 | -1.00 | 6.48 | -1.00 | -15.35 | 124.55 | 50.32 | 246.01 | 0.8145 | 844.1 | 999999 | |
| 2.72 | -1.00 | 2.31 | -1.00 | -15.63 | 124.50 | 50.27 | 245.66 | 0.8150 | 797.8 | 999999 | |
| 17.10 | -1.00 | 14.29 | -1.00 | -15.19 | 123.87 | 49.64 | 245.92 | 0.8076 | 932.3 | 999999 | |
| 12.37 | -1.00 | 10.22 | -1.00 | -14.47 | 123.60 | 49.36 | 246.66 | 0.8025 | 869.4 | 999999 | |
| 1.93 | -1.00 | 1.61 | -1.00 | -15.78 | 123.63 | 49.39 | 245.14 | 0.8075 | 620.2 | 999999 | |
| 2.28 | -1.00 | 1.89 | -1.00 | -15.51 | 123.44 | 49.21 | 245.38 | 0.8047 | 388.1 | 999999 | |
| 3.42 | -1.00 | 2.81 | -1.00 | -15.31 | 123.00 | 48.76 | 245.42 | 0.7998 | 971.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.84 | -13.48 | 122.47 | 48.23 | 247.37 | 0.7881 | 609.0 | 527.9 | |
| 14.47 | -1.00 | 11.76 | -1.00 | -14.74 | 122.68 | 48.45 | 245.96 | 0.7947 | 974.5 | 999999 | |
| 3.77 | -1.00 | 3.05 | -1.00 | -14.84 | 122.39 | 48.15 | 245.71 | 0.7922 | 922.3 | 999999 | |
| 0.70 | -1.00 | 0.57 | -1.00 | -15.21 | 122.26 | 48.03 | 245.22 | 0.7925 | 729.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.72 | -15.97 | 122.50 | 48.27 | 244.43 | 0.7976 | 201.0 | 84.0 | |
| 1.32 | -1.00 | 1.06 | -1.00 | -15.22 | 121.99 | 47.75 | 245.09 | 0.7898 | 846.2 | 999999 | |
| 4.82 | 13.51 | 3.87 | 10.82 | -15.80 | 121.61 | 47.37 | 244.24 | 0.7884 | -334.1 | 157.9 | |
| 0.53 | 1.67 | 0.41 | 1.28 | -13.53 | 120.38 | 46.15 | 246.42 | 0.7673 | 444.3 | 346.8 | |
| 3.42 | 8.33 | 2.63 | 6.43 | -14.24 | 120.17 | 45.93 | 245.45 | 0.7679 | -485.7 | -121.7 | |
| 0.00 | 1.40 | 0.00 | 1.07 | -14.46 | 119.73 | 45.50 | 244.99 | 0.7644 | -543.0 | -395.8 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -16.21 | 120.00 | 45.77 | 243.01 | 0.7744 | -356.0 | -247.9 | |
| 3.16 | 18.95 | 2.38 | 14.22 | -14.03 | 119.18 | 44.95 | 245.25 | 0.7570 | 468.8 | -114.5 | |
| 0.00 | 2.37 | 0.00 | 1.82 | -15.91 | 119.51 | 45.28 | 243.12 | 0.7683 | -393.0 | -231.9 | |
| 6.05 | -20.00 | 4.53 | -20.00 | -13.69 | 118.88 | 44.65 | 245.53 | 0.7524 | -719.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -15.33 | 119.08 | 44.85 | 243.62 | 0.7615 | -181.0 | -242.0 | |
| 0.00 | 1.67 | 0.00 | 1.28 | -15.82 | 119.18 | 44.94 | 243.07 | 0.7646 | -530.0 | -403.3 | |
| 0.00 | 1.40 | 0.00 | 1.06 | -15.25 | 118.93 | 44.70 | 243.64 | 0.7597 | -338.0 | -314.9 | |
| 0.00 | 1.23 | 0.00 | 0.93 | -15.14 | 118.73 | 44.49 | 243.67 | 0.7571 | -640.0 | -488.4 | |
| 12.98 | 52.36 | 9.91 | 39.88 | -16.24 | 118.86 | 44.62 | 242.40 | 0.7633 | -774.2 | -290.0 | |
| 0.00 | 2.02 | 0.00 | 1.52 | -15.36 | 118.61 | 44.37 | 243.35 | 0.7568 | -530.0 | -509.8 | |
| 0.00 | 1.23 | 0.00 | 0.92 | -15.29 | 118.16 | 43.92 | 243.21 | 0.7519 | -504.0 | -455.2 | |
| 5.35 | -27.00 | 4.06 | -27.00 | -16.55 | 118.33 | 44.10 | 241.76 | 0.7595 | -693.8 | 999999 | |
| 2.81 | 4.39 | 2.08 | 3.26 | -14.97 | 117.82 | 43.58 | 243.42 | 0.7470 | -573.0 | -372.8 | |
| 4.30 | -27.00 | 3.24 | -27.00 | -16.28 | 118.12 | 43.89 | 241.98 | 0.7561 | -865.6 | 999999 | |
| 0.35 | 1.32 | 0.26 | 0.97 | -15.20 | 117.49 | 43.25 | 242.97 | 0.7446 | -643.8 | -588.0 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -16.09 | 117.72 | 43.49 | 242.01 | 0.7512 | -670.0 | -690.2 | |
| 0.00 | 3.07 | 0.00 | 2.25 | -15.17 | 117.05 | 42.82 | 242.79 | 0.7400 | -658.0 | -623.6 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -15.14 | 116.66 | 42.43 | 242.62 | 0.7358 | -720.0 | -632.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
