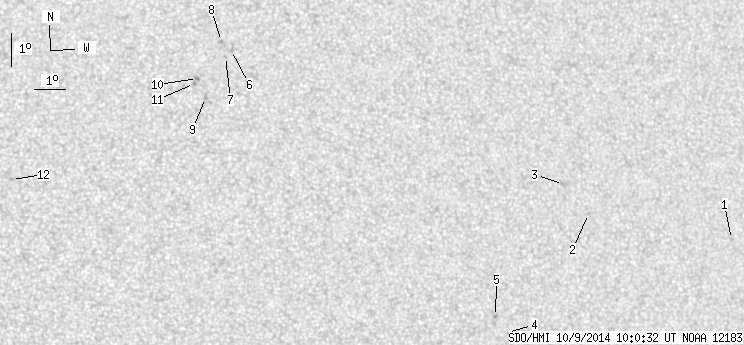

SDO HMI 2014-10-09 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.42 | 0.00 | 9.79 | 12.35 | 92.72 | 19.03 | 292.60 | 0.3459 | 84.8 | 51.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.86 | 9.28 | 104.27 | 30.59 | 277.69 | 0.5088 | -689.0 | -495.1 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 10.32 | 99.43 | 25.75 | 280.79 | 0.4369 | -789.0 | -650.7 | |
| 0.00 | 3.95 | 0.00 | 2.16 | 11.22 | 98.67 | 24.98 | 283.13 | 0.4272 | -630.0 | -419.9 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 6.88 | 96.50 | 22.81 | 272.87 | 0.3870 | -649.0 | -534.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 7.37 | 96.13 | 22.44 | 274.18 | 0.3813 | -897.0 | -773.5 | |
| 0.00 | 1.40 | 0.00 | 0.73 | 15.67 | 88.17 | 14.48 | 304.71 | 0.2942 | 772.0 | 587.0 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 15.49 | 87.96 | 14.28 | 304.56 | 0.2899 | 754.0 | 602.3 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 15.95 | 87.87 | 14.18 | 306.06 | 0.2927 | 966.0 | 780.3 | |
| 0.00 | 2.02 | 0.00 | 1.04 | 14.27 | 87.24 | 13.56 | 302.06 | 0.2692 | 973.0 | 750.8 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 14.85 | 87.03 | 13.34 | 304.31 | 0.2712 | 971.0 | 823.6 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 14.70 | 86.92 | 13.23 | 304.04 | 0.2684 | 1001.0 | 701.0 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 11.92 | 81.07 | 7.38 | 308.37 | 0.1611 | -765.0 | -646.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
