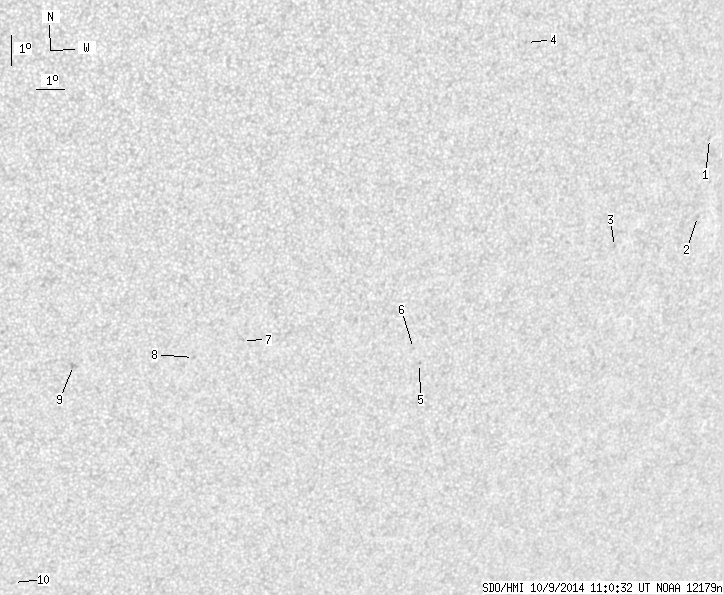

SDO HMI 2014-10-09 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.02 | 0.00 | 8.65 | -18.52 | 98.41 | 25.27 | 223.59 | 0.5911 | -315.5 | -264.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.99 | -13.45 | 110.20 | 37.06 | 241.69 | 0.6681 | 735.0 | 547.2 | |
| 0.00 | 1.40 | 0.00 | 0.95 | -15.94 | 110.23 | 37.09 | 238.42 | 0.6830 | 552.0 | 519.4 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -16.70 | 107.20 | 34.06 | 235.25 | 0.6551 | 269.0 | 245.6 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -9.98 | 103.00 | 29.86 | 241.59 | 0.5596 | -666.0 | -459.9 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -20.15 | 100.69 | 27.55 | 225.08 | 0.6156 | -626.0 | -562.9 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -19.64 | 100.38 | 27.24 | 225.39 | 0.6078 | -617.0 | -527.8 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -19.08 | 94.33 | 21.19 | 219.07 | 0.5442 | -659.0 | -615.2 | |
| 0.00 | 1.49 | 0.00 | 0.87 | -19.57 | 92.73 | 19.59 | 216.33 | 0.5355 | -746.0 | -595.9 | |
| 0.00 | 2.72 | 0.00 | 1.56 | -19.69 | 88.74 | 15.60 | 210.27 | 0.5043 | -781.0 | -695.7 | |
| 0.00 | 1.75 | 0.00 | 1.08 | -27.14 | 87.57 | 14.43 | 202.06 | 0.5928 | -616.0 | -487.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
