SDO HMI 2014-10-09 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.53 | 0.00 | 7.63 | 12.78 | 90.80 | 17.66 | 294.01 | 0.3271 | 261.9 | 225.7 | |
|
previous
or next observation for the same group /

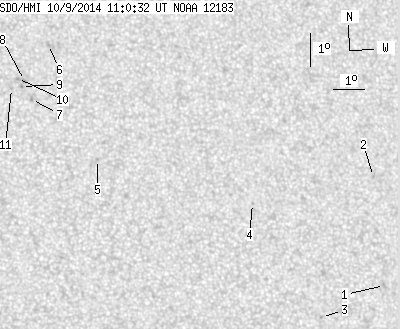

back to the solar disc SDO HMI 2014-10-09 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.10 | 0.00 | 1.15 | 8.27 | 98.25 | 25.11 | 276.17 | 0.4242 | -762.0 | -670.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 11.55 | 98.16 | 25.02 | 283.88 | 0.4286 | -783.0 | -585.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 7.41 | 96.11 | 22.97 | 274.24 | 0.3897 | -913.0 | -764.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 10.91 | 94.08 | 20.94 | 284.12 | 0.3635 | -751.0 | -627.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 12.41 | 89.19 | 16.05 | 292.42 | 0.2934 | 735.0 | 621.0 | |
| 0.00 | 2.10 | 0.00 | 1.09 | 15.93 | 87.87 | 14.73 | 305.05 | 0.3000 | 922.0 | 654.5 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 14.28 | 87.21 | 14.07 | 301.22 | 0.2767 | 923.0 | 784.3 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 14.86 | 87.02 | 13.88 | 303.37 | 0.2789 | 955.0 | 862.4 | |
| 0.00 | 1.32 | 0.00 | 0.68 | 14.68 | 86.91 | 13.77 | 303.00 | 0.2759 | 923.0 | 718.9 | |
| 0.00 | 1.40 | 0.00 | 0.72 | 14.93 | 86.80 | 13.66 | 303.97 | 0.2764 | 769.0 | 647.0 | |
| 0.00 | 0.70 | 0.00 | 0.36 | 14.63 | 86.59 | 13.45 | 303.42 | 0.2709 | 863.0 | 662.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
