SDO HMI 2014-10-09 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.68 | 0.00 | 14.99 | 12.38 | 56.55 | -16.59 | 65.34 | 0.3052 | -121.8 | 8.3 | |
|
previous
or next observation for the same group /

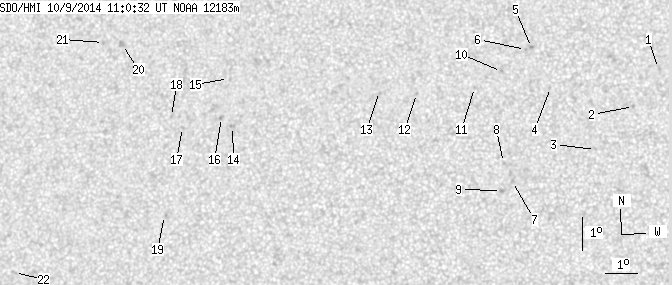

back to the solar disc SDO HMI 2014-10-09 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.22 | 14.12 | 67.07 | -6.07 | 36.73 | 0.1723 | -844.0 | -655.6 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.96 | 66.33 | -6.81 | 44.52 | 0.1657 | -878.0 | -662.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 11.65 | 65.19 | -7.95 | 54.92 | 0.1663 | -768.0 | -527.3 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 13.50 | 63.73 | -9.41 | 51.25 | 0.2048 | -713.0 | -476.2 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 14.70 | 63.08 | -10.06 | 48.68 | 0.2259 | -1031.0 | -847.6 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 14.64 | 62.90 | -10.24 | 49.40 | 0.2276 | -775.0 | -607.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 10.65 | 62.65 | -10.49 | 66.31 | 0.1962 | -922.0 | -735.0 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 11.22 | 62.35 | -10.79 | 64.28 | 0.2047 | -585.0 | -462.4 | |
| 0.00 | 1.67 | 0.00 | 0.84 | 10.38 | 62.32 | -10.82 | 68.22 | 0.1998 | -955.0 | -756.3 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 13.96 | 62.18 | -10.96 | 53.62 | 0.2303 | -911.0 | -692.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 13.46 | 61.35 | -11.79 | 57.29 | 0.2372 | -672.0 | -448.4 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 13.24 | 59.53 | -13.61 | 61.46 | 0.2619 | 908.0 | 637.0 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 13.27 | 58.36 | -14.78 | 63.17 | 0.2796 | 598.0 | 531.5 | |
| 0.00 | 2.28 | 0.00 | 1.20 | 12.07 | 53.72 | -19.42 | 71.72 | 0.3440 | 801.0 | 738.4 | |
| 0.00 | 0.53 | 0.00 | 0.28 | 13.51 | 53.47 | -19.67 | 67.96 | 0.3546 | 317.0 | 480.3 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 12.33 | 53.34 | -19.80 | 71.28 | 0.3510 | 880.0 | 792.2 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 11.98 | 52.09 | -21.05 | 73.07 | 0.3689 | 693.0 | 603.3 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 12.30 | 51.70 | -21.44 | 72.49 | 0.3761 | 684.0 | 505.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 9.32 | 51.69 | -21.45 | 80.41 | 0.3675 | 539.0 | 566.7 | |
| 0.00 | 3.95 | 0.00 | 2.14 | 14.40 | 49.87 | -23.27 | 68.55 | 0.4129 | 860.0 | 678.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 14.44 | 49.22 | -23.92 | 68.91 | 0.4226 | 797.0 | 677.9 | |
| 0.00 | 2.28 | 0.00 | 1.26 | 7.40 | 46.84 | -26.30 | 85.93 | 0.4423 | -702.0 | -535.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
