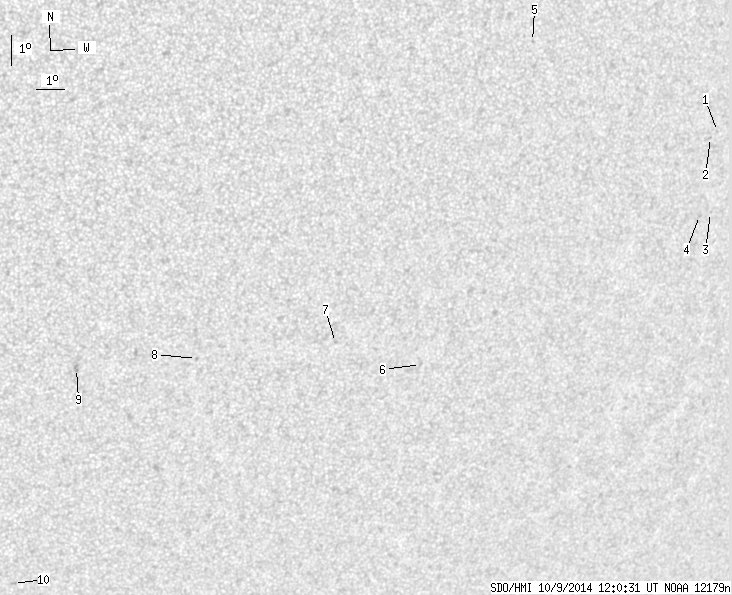

SDO HMI 2014-10-09 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.93 | 0.00 | 8.68 | -18.61 | 98.76 | 26.17 | 224.22 | 0.6019 | -151.2 | -212.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.65 | -13.25 | 110.43 | 37.84 | 242.45 | 0.6759 | 633.0 | 483.6 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -13.42 | 110.19 | 37.60 | 242.07 | 0.6741 | 608.0 | 507.1 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -15.85 | 110.69 | 38.09 | 239.19 | 0.6933 | 444.0 | 375.1 | |
| 0.00 | 1.40 | 0.00 | 0.96 | -15.92 | 110.26 | 37.67 | 238.83 | 0.6892 | 646.0 | 553.4 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -9.96 | 103.12 | 30.52 | 242.16 | 0.5679 | -620.0 | -496.5 | |
| 0.00 | 1.75 | 0.00 | 1.11 | -20.18 | 100.66 | 28.06 | 225.55 | 0.6208 | -419.0 | -409.6 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -19.28 | 97.47 | 24.88 | 223.29 | 0.5813 | -721.0 | -654.6 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -19.60 | 92.73 | 20.14 | 217.05 | 0.5405 | -707.0 | -579.4 | |
| 0.00 | 3.33 | 0.00 | 1.92 | -19.78 | 88.73 | 16.14 | 211.03 | 0.5095 | -655.0 | -619.6 | |
| 0.00 | 1.84 | 0.00 | 1.13 | -27.15 | 87.48 | 14.89 | 202.67 | 0.5954 | -721.0 | -546.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
