SDO HMI 2014-10-09 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.45 | 416.38 | 105.37 | 350.30 | -15.20 | 122.55 | 49.96 | 246.00 | 0.8103 | 267.6 | 168.8 | |
|
previous
or next observation for the same group /

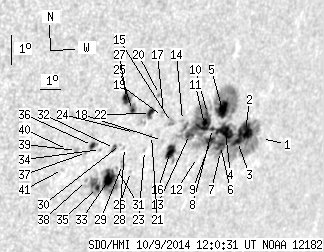

back to the solar disc SDO HMI 2014-10-09 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.80 | -15.60 | 125.97 | 53.38 | 246.89 | 0.8426 | -292.0 | -244.0 | |
| 17.80 | 284.24 | 15.86 | 245.91 | -15.29 | 125.03 | 52.44 | 246.90 | 0.8334 | 639.3 | 319.4 | |
| 5.52 | -2.00 | 4.90 | -2.00 | -15.58 | 124.73 | 52.13 | 246.45 | 0.8317 | 762.4 | 999999 | |
| 14.03 | -2.00 | 12.19 | -2.00 | -15.19 | 123.98 | 51.39 | 246.62 | 0.8238 | 847.8 | 999999 | |
| 14.20 | -2.00 | 12.16 | -2.00 | -14.46 | 123.59 | 51.00 | 247.31 | 0.8178 | 826.1 | 999999 | |
| 4.73 | -2.00 | 4.12 | -2.00 | -15.63 | 123.89 | 51.29 | 246.07 | 0.8243 | 639.2 | 999999 | |
| 1.05 | -2.00 | 0.92 | -2.00 | -15.83 | 123.96 | 51.36 | 245.87 | 0.8256 | 602.2 | 999999 | |
| 1.49 | -2.00 | 1.27 | -2.00 | -15.04 | 123.29 | 50.69 | 246.53 | 0.8169 | 764.4 | 999999 | |
| 7.01 | -2.00 | 6.02 | -2.00 | -15.45 | 123.33 | 50.74 | 246.06 | 0.8187 | 865.1 | 999999 | |
| 0.96 | -2.00 | 0.81 | -2.00 | -14.52 | 122.88 | 50.29 | 246.96 | 0.8114 | 854.1 | 999999 | |
| 10.87 | -2.00 | 9.18 | -2.00 | -14.87 | 122.84 | 50.25 | 246.55 | 0.8122 | 951.4 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.45 | -15.92 | 122.85 | 50.26 | 245.33 | 0.8159 | 462.0 | 465.7 | |
| 3.77 | -2.00 | 3.15 | -2.00 | -15.13 | 122.20 | 49.61 | 245.98 | 0.8071 | 720.0 | 999999 | |
| 0.00 | 1.40 | 0.00 | 1.15 | -14.64 | 121.71 | 49.12 | 246.36 | 0.8008 | 654.0 | 545.3 | |
| 0.00 | 4.03 | 0.00 | 3.28 | -14.66 | 121.20 | 48.60 | 246.12 | 0.7959 | 638.0 | 550.2 | |
| 8.86 | 16.22 | 7.30 | 13.40 | -15.61 | 121.44 | 48.85 | 245.11 | 0.8017 | 36.8 | 131.8 | |
| 0.00 | 1.32 | 0.00 | 1.06 | -14.31 | 120.72 | 48.13 | 246.35 | 0.7900 | -344.0 | -123.3 | |
| 0.00 | 1.32 | 0.00 | 1.07 | -15.21 | 120.94 | 48.35 | 245.36 | 0.7955 | 266.0 | 252.1 | |
| 0.00 | 0.96 | 0.00 | 0.78 | -14.43 | 120.71 | 48.12 | 246.19 | 0.7903 | -78.0 | -46.2 | |
| 0.00 | 1.32 | 0.00 | 1.05 | -13.71 | 120.37 | 47.77 | 246.92 | 0.7843 | 504.0 | 422.4 | |
| 0.00 | 1.14 | 0.00 | 0.91 | -15.01 | 120.36 | 47.77 | 245.36 | 0.7891 | -241.0 | -137.5 | |
| 4.12 | 10.61 | 3.27 | 8.41 | -14.29 | 120.11 | 47.52 | 246.11 | 0.7839 | -455.1 | -306.0 | |
| 0.00 | 0.96 | 0.00 | 0.77 | -15.47 | 120.18 | 47.59 | 244.73 | 0.7891 | -425.0 | -293.3 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -14.84 | 119.53 | 46.94 | 245.19 | 0.7804 | -387.0 | -368.4 | |
| 2.10 | 17.27 | 1.64 | 13.39 | -14.12 | 119.24 | 46.65 | 245.94 | 0.7747 | 472.9 | 1.6 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -16.10 | 119.73 | 47.14 | 243.77 | 0.7873 | -245.0 | -171.2 | |
| 6.40 | -25.00 | 4.94 | -25.00 | -13.71 | 118.87 | 46.28 | 246.27 | 0.7692 | -689.2 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.76 | -15.29 | 119.21 | 46.62 | 244.50 | 0.7790 | -259.0 | -196.5 | |
| 0.00 | 3.42 | 0.00 | 2.70 | -15.84 | 119.28 | 46.69 | 243.88 | 0.7819 | -383.0 | -303.6 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -15.18 | 119.00 | 46.40 | 244.54 | 0.7764 | -396.0 | -337.3 | |
| 0.00 | 1.75 | 0.00 | 1.38 | -15.95 | 119.04 | 46.45 | 243.64 | 0.7800 | -390.0 | -334.5 | |
| 1.67 | 3.51 | 1.30 | 2.73 | -15.29 | 118.76 | 46.16 | 244.30 | 0.7745 | -586.8 | -446.1 | |
| 16.22 | 48.66 | 12.75 | 38.16 | -16.28 | 118.78 | 46.19 | 243.12 | 0.7788 | -713.0 | -391.6 | |
| 0.00 | 1.14 | 0.00 | 0.88 | -15.27 | 118.12 | 45.53 | 244.03 | 0.7681 | -445.0 | -371.7 | |
| 2.28 | -33.00 | 1.78 | -33.00 | -16.50 | 118.35 | 45.76 | 242.65 | 0.7756 | -746.8 | 999999 | |
| 2.37 | 4.65 | 1.81 | 3.55 | -15.11 | 117.72 | 45.13 | 244.03 | 0.7634 | -665.1 | -500.1 | |
| 0.00 | 0.96 | 0.00 | 0.73 | -15.31 | 117.52 | 44.92 | 243.68 | 0.7622 | -768.0 | -575.5 | |
| 0.00 | 1.14 | 0.00 | 0.88 | -16.23 | 117.78 | 45.18 | 242.70 | 0.7688 | -736.0 | -616.0 | |
| 0.00 | 3.16 | 0.00 | 2.38 | -15.21 | 117.05 | 44.46 | 243.58 | 0.7570 | -775.0 | -664.4 | |
| 0.00 | 0.79 | 0.00 | 0.59 | -15.15 | 116.64 | 44.05 | 243.45 | 0.7525 | -705.0 | -510.6 | |
| 0.00 | 1.49 | 0.00 | 1.12 | -15.78 | 116.59 | 44.00 | 242.65 | 0.7549 | -653.0 | -528.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
