SDO HMI 2014-10-09 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.93 | 0.00 | 6.30 | 14.50 | 90.31 | 17.71 | 298.09 | 0.3378 | 390.0 | 347.7 | |
|
previous
or next observation for the same group /

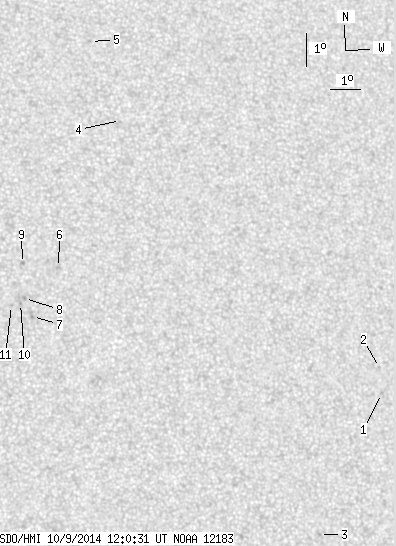

back to the solar disc SDO HMI 2014-10-09 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.73 | 11.54 | 98.45 | 25.86 | 283.53 | 0.4414 | -451.0 | -430.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 12.32 | 98.47 | 25.87 | 285.27 | 0.4438 | -669.0 | -539.6 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 7.41 | 96.06 | 23.46 | 274.23 | 0.3976 | -932.0 | -840.7 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 20.17 | 90.66 | 18.07 | 310.16 | 0.3825 | 561.0 | 589.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 22.65 | 89.96 | 17.37 | 316.17 | 0.3995 | 645.0 | 441.9 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 15.75 | 88.18 | 15.58 | 303.14 | 0.3102 | 743.0 | 611.2 | |
| 0.00 | 1.14 | 0.00 | 0.59 | 14.29 | 87.23 | 14.64 | 300.32 | 0.2850 | 919.0 | 810.2 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 14.84 | 87.02 | 14.42 | 302.38 | 0.2864 | 1010.0 | 822.3 | |
| 0.00 | 1.75 | 0.00 | 0.91 | 15.90 | 87.03 | 14.44 | 305.49 | 0.2958 | 880.0 | 717.0 | |
| 0.00 | 0.79 | 0.00 | 0.41 | 14.69 | 86.88 | 14.29 | 302.16 | 0.2832 | 808.0 | 667.1 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 14.64 | 86.59 | 13.99 | 302.49 | 0.2787 | 776.0 | 625.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
