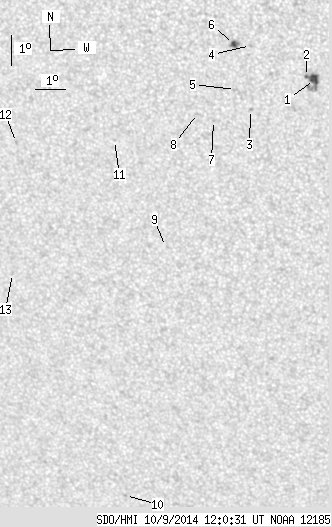

SDO HMI 2014-10-09 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.51 | 32.44 | 4.54 | 17.65 | -14.03 | 59.77 | -12.82 | 148.28 | 0.4074 | 257.3 | 263.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.70 | 16.13 | 3.04 | 8.62 | -12.97 | 62.17 | -10.42 | 151.72 | 0.3736 | 1082.6 | 768.3 | |
| 0.53 | -1.00 | 0.28 | -1.00 | -12.88 | 61.93 | -10.67 | 151.04 | 0.3742 | 821.3 | 999999 | |
| 0.00 | 1.40 | 0.00 | 0.76 | -13.97 | 60.11 | -12.48 | 148.57 | 0.4039 | 808.0 | 581.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.94 | 60.22 | -12.38 | 145.90 | 0.3757 | -863.0 | -725.1 | |
| 0.00 | 1.75 | 0.00 | 0.95 | -13.35 | 59.67 | -12.92 | 146.82 | 0.3993 | 639.0 | 524.3 | |
| 2.28 | 5.00 | 1.22 | 2.67 | -11.92 | 59.68 | -12.91 | 144.75 | 0.3803 | -986.0 | -806.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -14.35 | 58.91 | -13.68 | 146.72 | 0.4192 | 615.0 | 522.3 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.14 | 58.42 | -14.17 | 145.48 | 0.4208 | -564.0 | -348.6 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -18.50 | 57.04 | -15.55 | 148.49 | 0.4885 | 277.0 | 408.8 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -27.11 | 54.57 | -18.03 | 153.19 | 0.6131 | -725.0 | -567.1 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.09 | 55.68 | -16.91 | 141.99 | 0.4580 | 694.0 | 535.0 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -15.27 | 52.46 | -20.14 | 137.34 | 0.4921 | -684.0 | -556.2 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -19.57 | 51.81 | -20.78 | 142.06 | 0.5459 | 662.0 | 551.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
