SDO HMI 2014-10-09 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.33 | 0.00 | 12.97 | -18.53 | 101.05 | 29.00 | 227.02 | 0.6256 | 45.7 | -78.8 | |
|
previous
or next observation for the same group /

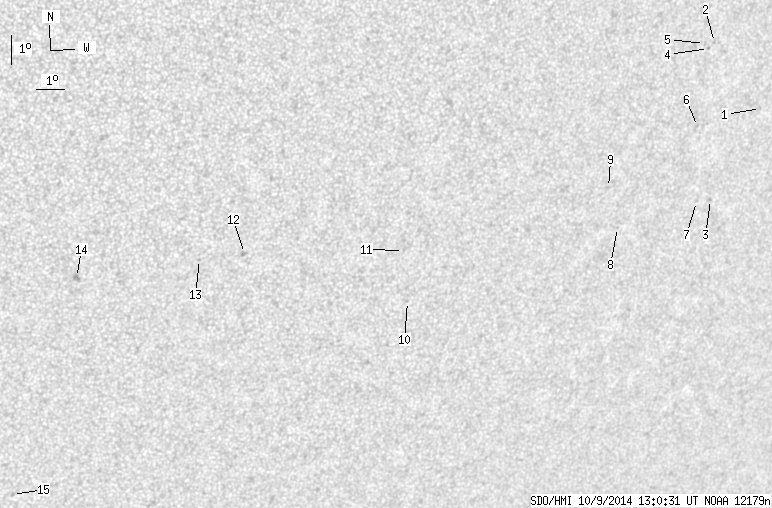

back to the solar disc SDO HMI 2014-10-09 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.37 | -15.53 | 112.77 | 40.72 | 241.20 | 0.7197 | 477.0 | 373.0 | |
| 0.00 | 0.96 | 0.00 | 0.65 | -13.26 | 110.43 | 38.39 | 242.77 | 0.6821 | 669.0 | 567.8 | |
| 0.00 | 1.40 | 0.00 | 1.00 | -18.37 | 111.44 | 39.40 | 236.87 | 0.7217 | 553.0 | 442.1 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -13.43 | 110.23 | 38.19 | 242.42 | 0.6808 | 599.0 | 520.2 | |
| 0.00 | 1.31 | 0.00 | 0.88 | -13.26 | 110.04 | 38.00 | 242.53 | 0.6777 | 439.0 | 497.5 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -15.93 | 110.31 | 38.27 | 239.21 | 0.6956 | 758.0 | 701.0 | |
| 0.00 | 1.49 | 0.00 | 1.05 | -18.40 | 110.88 | 38.84 | 236.48 | 0.7161 | 482.0 | 360.2 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -19.04 | 107.89 | 35.85 | 233.63 | 0.6899 | 433.0 | 363.5 | |
| 0.00 | 1.31 | 0.00 | 0.88 | -17.69 | 107.22 | 35.18 | 234.83 | 0.6738 | 347.0 | 246.7 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -21.03 | 100.42 | 28.38 | 224.84 | 0.6315 | -592.0 | -458.4 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -19.31 | 99.94 | 27.90 | 226.47 | 0.6113 | -645.0 | -616.8 | |
| 0.00 | 3.33 | 0.00 | 1.98 | -19.13 | 94.33 | 22.29 | 220.41 | 0.5549 | -722.0 | -575.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -19.26 | 92.82 | 20.77 | 218.30 | 0.5423 | -642.0 | -574.9 | |
| 0.00 | 3.68 | 0.00 | 2.12 | -19.70 | 88.74 | 16.70 | 211.98 | 0.5128 | -762.0 | -612.5 | |
| 0.00 | 1.67 | 0.00 | 1.03 | -27.14 | 87.49 | 15.44 | 203.43 | 0.5981 | -709.0 | -547.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
