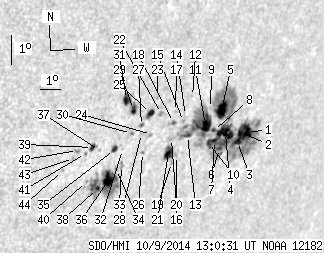

SDO HMI 2014-10-09 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.38 | 398.94 | 91.36 | 339.57 | -15.22 | 122.55 | 50.51 | 246.20 | 0.8154 | 264.8 | 171.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 13:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.06 | 266.75 | 11.83 | 234.02 | -15.32 | 125.16 | 53.12 | 247.12 | 0.8395 | 568.2 | 337.3 | |
| 3.86 | -1.00 | 3.46 | -1.00 | -15.29 | 124.84 | 52.79 | 247.03 | 0.8366 | 800.4 | 999999 | |
| 6.14 | -1.00 | 5.52 | -1.00 | -15.57 | 124.78 | 52.74 | 246.69 | 0.8370 | 730.2 | 999999 | |
| 13.06 | -1.00 | 11.52 | -1.00 | -15.22 | 124.04 | 52.00 | 246.82 | 0.8293 | 794.9 | 999999 | |
| 11.66 | -1.00 | 10.11 | -1.00 | -14.48 | 123.59 | 51.55 | 247.50 | 0.8229 | 829.3 | 999999 | |
| 1.75 | -1.00 | 1.55 | -1.00 | -15.72 | 123.92 | 51.87 | 246.20 | 0.8298 | 609.5 | 999999 | |
| 1.40 | -1.00 | 1.22 | -1.00 | -15.43 | 123.56 | 51.52 | 246.40 | 0.8257 | 833.6 | 999999 | |
| 1.40 | -1.00 | 1.22 | -1.00 | -15.09 | 123.40 | 51.35 | 246.72 | 0.8231 | 746.6 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.57 | -14.36 | 123.01 | 50.96 | 247.42 | 0.8172 | 476.0 | 452.6 | |
| 1.67 | -1.00 | 1.45 | -1.00 | -15.47 | 123.27 | 51.23 | 246.24 | 0.8232 | 705.5 | 999999 | |
| 12.71 | -1.00 | 10.89 | -1.00 | -14.86 | 122.92 | 50.88 | 246.80 | 0.8180 | 951.0 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.66 | -13.89 | 121.99 | 49.94 | 247.57 | 0.8060 | 665.0 | 505.3 | |
| 2.10 | -1.00 | 1.77 | -1.00 | -15.14 | 122.13 | 50.09 | 246.17 | 0.8116 | 790.4 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -14.48 | 121.83 | 49.78 | 246.82 | 0.8065 | 426.0 | 430.3 | |
| 0.00 | 1.14 | 0.00 | 0.95 | -14.67 | 121.79 | 49.74 | 246.58 | 0.8068 | 712.0 | 625.8 | |
| 0.00 | 1.14 | 0.00 | 0.96 | -15.75 | 121.80 | 49.76 | 245.32 | 0.8107 | 543.0 | 440.3 | |
| 0.00 | 1.14 | 0.00 | 0.94 | -14.31 | 121.29 | 49.25 | 246.81 | 0.8009 | 427.0 | 416.2 | |
| 0.61 | 3.16 | 0.51 | 2.60 | -14.66 | 121.30 | 49.26 | 246.40 | 0.8022 | 607.7 | 604.1 | |
| 0.00 | 1.40 | 0.00 | 1.18 | -15.96 | 121.63 | 49.58 | 245.01 | 0.8098 | -293.0 | -225.5 | |
| 0.00 | 1.84 | 0.00 | 1.53 | -15.17 | 121.37 | 49.33 | 245.82 | 0.8046 | 374.0 | 409.0 | |
| 7.54 | 10.61 | 6.28 | 8.84 | -15.62 | 121.37 | 49.33 | 245.30 | 0.8062 | -98.0 | 82.4 | |
| 0.00 | 2.37 | 0.00 | 1.92 | -14.31 | 120.63 | 48.59 | 246.53 | 0.7945 | -286.0 | -216.6 | |
| 0.00 | 1.31 | 0.00 | 1.06 | -13.78 | 120.30 | 48.25 | 247.03 | 0.7893 | 429.0 | 412.9 | |
| 0.00 | 1.05 | 0.00 | 0.85 | -14.96 | 120.36 | 48.31 | 245.65 | 0.7942 | -286.0 | -186.4 | |
| 3.86 | 5.43 | 3.10 | 4.36 | -14.27 | 120.11 | 48.06 | 246.37 | 0.7892 | -483.5 | -299.7 | |
| 0.00 | 1.05 | 0.00 | 0.85 | -15.51 | 120.10 | 48.06 | 244.89 | 0.7938 | -328.0 | -293.8 | |
| 0.70 | 2.02 | 0.56 | 1.61 | -14.62 | 119.79 | 47.75 | 245.81 | 0.7875 | -545.0 | -418.7 | |
| 0.00 | 1.58 | 0.00 | 1.27 | -14.88 | 119.87 | 47.82 | 245.53 | 0.7892 | 214.0 | 162.4 | |
| 3.16 | 14.99 | 2.49 | 11.75 | -14.07 | 119.27 | 47.23 | 246.24 | 0.7802 | 498.7 | -124.4 | |
| 0.00 | 1.14 | 0.00 | 0.91 | -14.84 | 119.39 | 47.35 | 245.37 | 0.7844 | -482.0 | -475.8 | |
| 5.08 | -29.00 | 3.97 | -29.00 | -13.72 | 118.86 | 46.82 | 246.49 | 0.7748 | -713.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -15.33 | 119.12 | 47.08 | 244.67 | 0.7837 | -305.0 | -235.1 | |
| 0.00 | 2.98 | 0.00 | 2.38 | -15.85 | 119.24 | 47.19 | 244.10 | 0.7868 | -414.0 | -320.5 | |
| 0.44 | 1.49 | 0.35 | 1.19 | -15.96 | 119.04 | 47.00 | 243.88 | 0.7854 | -458.4 | -369.3 | |
| 2.37 | 3.94 | 1.86 | 3.11 | -15.30 | 118.75 | 46.71 | 244.54 | 0.7799 | -582.6 | -395.8 | |
| 10.69 | 56.54 | 8.49 | 44.83 | -16.26 | 118.77 | 46.72 | 243.40 | 0.7839 | -809.0 | -356.7 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -15.27 | 118.06 | 46.02 | 244.25 | 0.7730 | -531.0 | -448.0 | |
| 1.93 | -36.00 | 1.52 | -36.00 | -16.52 | 118.34 | 46.30 | 242.90 | 0.7809 | -752.8 | 999999 | |
| 2.19 | 4.47 | 1.69 | 3.45 | -15.15 | 117.72 | 45.67 | 244.24 | 0.7690 | -646.2 | -472.7 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -16.24 | 117.76 | 45.72 | 242.95 | 0.7741 | -693.0 | -651.8 | |
| 0.00 | 1.14 | 0.00 | 0.88 | -15.32 | 117.45 | 45.41 | 243.91 | 0.7671 | -582.0 | -609.9 | |
| 0.00 | 2.45 | 0.00 | 1.87 | -15.19 | 117.06 | 45.02 | 243.88 | 0.7626 | -698.0 | -645.2 | |
| 0.00 | 1.05 | 0.00 | 0.80 | -15.44 | 116.95 | 44.91 | 243.52 | 0.7626 | -633.0 | -526.2 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -15.79 | 116.57 | 44.53 | 242.91 | 0.7602 | -658.0 | -592.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
