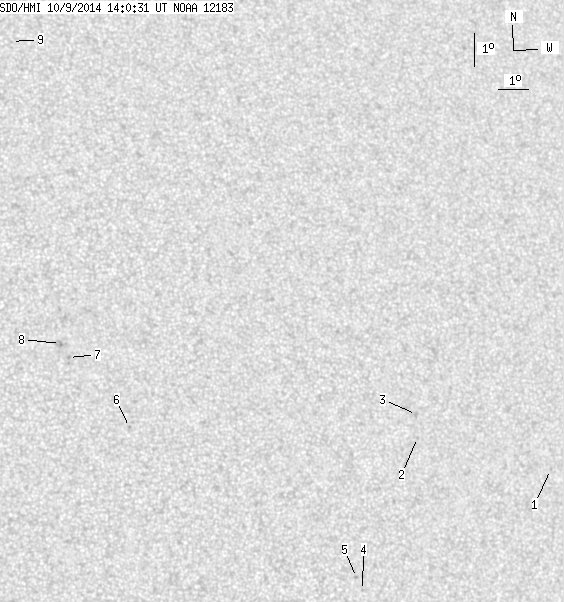

SDO HMI 2014-10-09 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.56 | 0.00 | 6.27 | 12.64 | 93.57 | 22.08 | 289.65 | 0.3948 | -26.4 | -4.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.56 | 10.40 | 103.01 | 31.51 | 279.72 | 0.5237 | -491.0 | -407.3 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 11.60 | 98.48 | 26.99 | 283.27 | 0.4587 | -653.0 | -578.2 | |
| 0.00 | 2.45 | 0.00 | 1.37 | 12.29 | 98.52 | 27.03 | 284.75 | 0.4611 | -716.0 | -621.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 7.11 | 96.26 | 24.77 | 273.44 | 0.4182 | -729.0 | -614.8 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 7.51 | 96.08 | 24.59 | 274.40 | 0.4155 | -892.0 | -700.1 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 12.30 | 89.00 | 17.51 | 290.56 | 0.3154 | 733.0 | 620.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | 14.47 | 87.20 | 15.71 | 299.26 | 0.3018 | 898.0 | 801.9 | |
| 0.00 | 2.10 | 0.00 | 1.09 | 14.90 | 86.98 | 15.48 | 300.87 | 0.3019 | 968.0 | 833.9 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 24.23 | 86.27 | 14.78 | 323.30 | 0.3909 | 644.0 | 493.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
