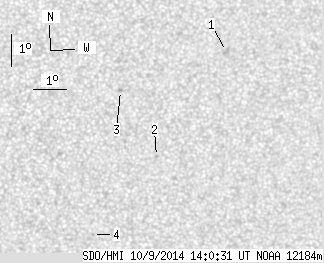

SDO HMI 2014-10-09 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.27 | 0.00 | 3.73 | -7.60 | 75.83 | 4.34 | 198.08 | 0.2539 | -468.2 | 16.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.77 | 0.00 | 1.92 | -6.07 | 77.34 | 5.85 | 205.46 | 0.2368 | 734.0 | 646.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -9.29 | 75.25 | 3.76 | 193.59 | 0.2766 | -881.0 | -653.1 | |
| 0.00 | 1.40 | 0.00 | 0.72 | -7.24 | 74.15 | 2.65 | 191.14 | 0.2387 | -1068.0 | -779.9 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -11.72 | 73.32 | 1.83 | 185.78 | 0.3113 | -658.0 | -490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
