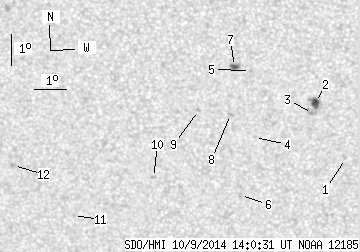

SDO HMI 2014-10-09 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.48 | 28.39 | 3.45 | 15.30 | -13.61 | 59.71 | -11.78 | 149.93 | 0.3943 | 258.0 | 138.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.42 | -14.76 | 63.13 | -8.37 | 158.50 | 0.3857 | 699.0 | 513.0 | |
| 4.38 | 7.71 | 2.33 | 4.10 | -12.98 | 62.26 | -9.23 | 154.51 | 0.3650 | 1088.8 | 859.3 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -13.34 | 62.15 | -9.34 | 154.68 | 0.3709 | 865.0 | 715.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -14.14 | 60.30 | -11.20 | 151.47 | 0.3959 | 733.0 | 661.1 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -12.01 | 60.27 | -11.22 | 148.56 | 0.3664 | -911.0 | -657.0 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -16.01 | 59.75 | -11.74 | 152.55 | 0.4262 | 500.0 | 422.1 | |
| 2.10 | 4.91 | 1.12 | 2.61 | -11.89 | 59.78 | -11.71 | 147.28 | 0.3691 | -1018.0 | -835.0 | |
| 0.00 | 2.02 | 0.00 | 1.08 | -13.42 | 59.58 | -11.91 | 149.01 | 0.3916 | 714.0 | 582.6 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -13.31 | 58.58 | -12.92 | 146.78 | 0.3988 | -950.0 | -743.6 | |
| 0.00 | 2.10 | 0.00 | 1.16 | -15.50 | 57.00 | -14.49 | 146.71 | 0.4411 | 620.0 | 311.5 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -16.81 | 54.30 | -17.19 | 143.83 | 0.4814 | 628.0 | 514.9 | |
| 0.00 | 2.10 | 0.00 | 1.19 | -15.26 | 52.48 | -19.01 | 138.95 | 0.4805 | -824.0 | -509.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
