SDO HMI 2014-10-09 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.18 | 0.00 | 7.92 | -20.59 | 74.91 | 3.97 | 188.50 | 0.4629 | 446.9 | 360.5 | |
|
previous
or next observation for the same group /

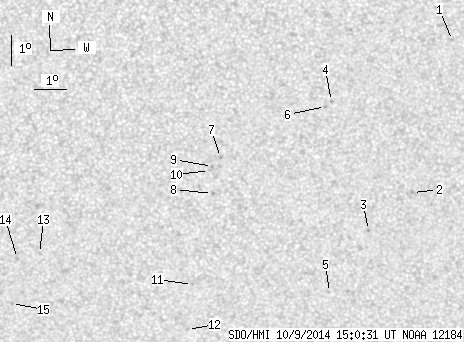

back to the solar disc SDO HMI 2014-10-09 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.19 | -15.02 | 81.63 | 10.68 | 206.39 | 0.4046 | 738.0 | 599.0 | |
| 0.00 | 1.75 | 0.00 | 0.98 | -19.97 | 80.63 | 9.68 | 199.75 | 0.4698 | 803.0 | 674.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -21.22 | 79.27 | 8.33 | 196.36 | 0.4815 | 819.0 | 702.7 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -16.92 | 77.90 | 6.95 | 196.43 | 0.4111 | 726.0 | 594.8 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -23.31 | 78.12 | 7.17 | 193.10 | 0.5078 | 659.0 | 549.2 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -17.08 | 77.71 | 6.77 | 195.91 | 0.4128 | 775.0 | 677.9 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -18.71 | 74.44 | 3.50 | 187.80 | 0.4276 | 833.0 | 683.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -19.91 | 74.21 | 3.27 | 186.93 | 0.4458 | 693.0 | 614.8 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -19.01 | 74.19 | 3.25 | 187.16 | 0.4317 | 895.0 | 720.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -19.14 | 74.10 | 3.16 | 186.92 | 0.4336 | 745.0 | 680.0 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -22.98 | 73.62 | 2.68 | 185.04 | 0.4922 | 683.0 | 499.3 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -24.54 | 73.49 | 2.55 | 184.52 | 0.5155 | 582.0 | 459.8 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -21.92 | 68.67 | -2.28 | 175.53 | 0.4753 | -719.0 | -550.0 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -22.09 | 67.95 | -2.99 | 174.18 | 0.4790 | -841.0 | -682.2 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -23.64 | 67.72 | -3.22 | 174.09 | 0.5028 | -687.0 | -531.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
