SDO HMI 2014-10-09 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.85 | 0.00 | 7.63 | 13.07 | 94.47 | 24.07 | 290.00 | 0.4241 | -97.3 | 28.5 | |
|
previous
or next observation for the same group /

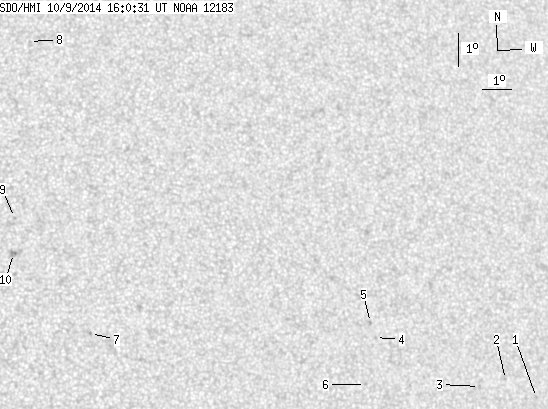

back to the solar disc SDO HMI 2014-10-09 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.47 | 9.75 | 104.18 | 33.79 | 278.22 | 0.5559 | -584.0 | -475.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | 10.35 | 103.12 | 32.73 | 279.46 | 0.5413 | -629.0 | -487.2 | |
| 0.00 | 1.58 | 0.00 | 0.92 | 10.20 | 102.17 | 31.77 | 279.31 | 0.5273 | -647.0 | -519.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 11.87 | 98.69 | 28.29 | 283.41 | 0.4788 | -741.0 | -650.7 | |
| 0.00 | 1.58 | 0.00 | 0.89 | 12.33 | 98.57 | 28.17 | 284.40 | 0.4782 | -731.0 | -672.9 | |
| 0.00 | 1.31 | 0.00 | 0.74 | 10.48 | 98.19 | 27.80 | 280.63 | 0.4685 | -665.0 | -484.9 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 12.40 | 89.20 | 18.81 | 289.72 | 0.3359 | 830.0 | 701.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 21.36 | 88.10 | 17.70 | 313.14 | 0.3898 | 646.0 | 504.7 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 15.99 | 87.03 | 16.64 | 302.22 | 0.3268 | 750.0 | 578.8 | |
| 0.00 | 3.77 | 0.00 | 1.97 | 14.90 | 86.91 | 16.51 | 299.38 | 0.3166 | 798.0 | 778.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
