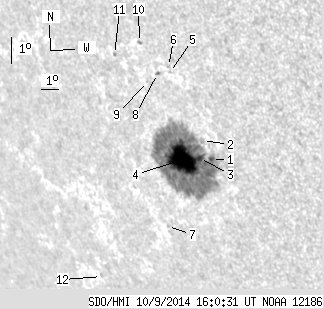

SDO HMI 2014-10-09 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.70 | 318.86 | 47.65 | 294.52 | -20.65 | 18.63 | -51.76 | 119.37 | 0.8454 | 712.1 | 169.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 308.44 | 1.64 | 284.77 | -20.56 | 20.10 | -50.29 | 119.90 | 0.8331 | 818.7 | 173.5 | |
| 0.00 | 2.63 | 0.00 | 2.34 | -19.95 | 19.92 | -50.47 | 119.14 | 0.8323 | 317.0 | 385.5 | |
| 3.51 | -1.00 | 3.17 | -1.00 | -20.58 | 19.48 | -50.91 | 119.66 | 0.8383 | 969.5 | 999999 | |
| 46.35 | -1.00 | 42.84 | -1.00 | -20.70 | 18.55 | -51.84 | 119.39 | 0.8463 | 817.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -17.79 | 19.17 | -51.22 | 116.41 | 0.8309 | 344.0 | 327.4 | |
| 0.00 | 1.05 | 0.00 | 0.93 | -17.60 | 19.20 | -51.19 | 116.20 | 0.8300 | 378.0 | 299.3 | |
| 0.00 | 0.79 | 0.00 | 0.79 | -23.13 | 16.43 | -53.96 | 121.15 | 0.8709 | 468.0 | 378.7 | |
| 0.00 | 1.40 | 0.00 | 1.26 | -17.88 | 18.53 | -51.86 | 116.25 | 0.8368 | 243.0 | 213.7 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -18.20 | 17.88 | -52.52 | 116.35 | 0.8434 | 451.0 | 373.0 | |
| 0.00 | 1.75 | 0.00 | 1.58 | -16.93 | 17.99 | -52.40 | 114.97 | 0.8383 | -637.0 | -561.5 | |
| 0.00 | 0.70 | 0.00 | 0.66 | -17.45 | 16.46 | -53.94 | 114.98 | 0.8528 | -363.0 | -412.6 | |
| 0.00 | 0.96 | 0.00 | 1.17 | -25.36 | 10.90 | -59.49 | 121.43 | 0.9141 | -296.0 | -293.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
