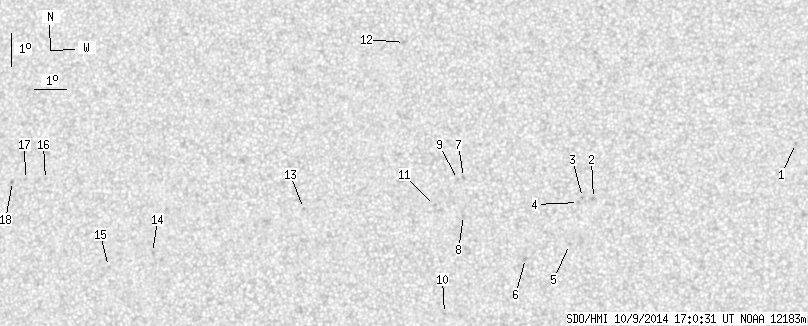

SDO HMI 2014-10-09 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.52 | 0.00 | 12.50 | 14.29 | 61.18 | -8.66 | 243.28 | 0.2192 | -296.9 | -268.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.71 | 15.88 | 73.48 | 3.64 | 339.97 | 0.1790 | -780.0 | -593.6 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 14.23 | 67.21 | -2.63 | 17.76 | 0.1465 | -944.0 | -787.3 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 14.25 | 66.87 | -2.97 | 19.81 | 0.1488 | -972.0 | -760.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.10 | 66.75 | -3.09 | 20.93 | 0.1471 | -699.0 | -648.3 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 12.83 | 66.49 | -3.35 | 26.41 | 0.1288 | -843.0 | -643.2 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 12.40 | 65.14 | -4.70 | 36.65 | 0.1347 | -863.0 | -691.8 | |
| 0.00 | 1.84 | 0.00 | 0.93 | 14.83 | 63.17 | -6.67 | 36.85 | 0.1882 | -918.0 | -677.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 13.68 | 63.20 | -6.64 | 40.83 | 0.1727 | -894.0 | -686.7 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 14.77 | 62.98 | -6.86 | 37.80 | 0.1893 | -833.0 | -572.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 10.73 | 62.69 | -7.15 | 57.19 | 0.1463 | -969.0 | -685.2 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 13.97 | 62.29 | -7.55 | 43.30 | 0.1868 | -939.0 | -697.1 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 18.92 | 61.14 | -8.70 | 32.99 | 0.2640 | -689.0 | -377.5 | |
| 0.00 | 1.31 | 0.00 | 0.67 | 13.82 | 58.20 | -11.64 | 55.67 | 0.2384 | 846.0 | 673.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 12.37 | 53.50 | -16.34 | 68.02 | 0.2977 | 983.0 | 766.0 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.91 | 52.12 | -17.72 | 70.81 | 0.3168 | 711.0 | 558.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 14.46 | 49.87 | -19.97 | 65.72 | 0.3644 | 758.0 | 587.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 14.44 | 49.21 | -20.63 | 66.38 | 0.3740 | 919.0 | 663.8 | |
| 0.00 | 1.40 | 0.00 | 0.75 | 14.36 | 48.79 | -21.05 | 66.94 | 0.3798 | 781.0 | 645.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
