SDO HMI 2014-10-09 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.92 | 0.00 | 12.22 | -19.89 | 74.83 | 4.99 | 191.02 | 0.4577 | 401.8 | 270.4 | |
|
previous
or next observation for the same group /

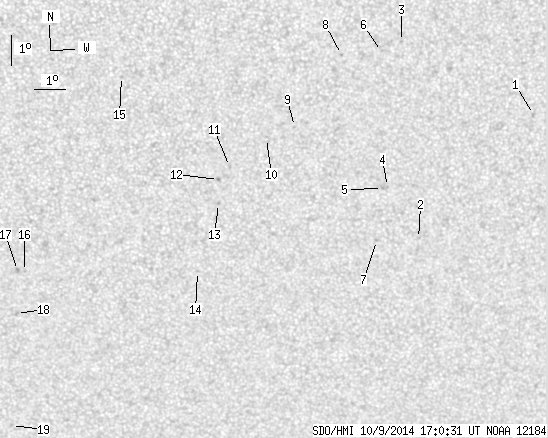

back to the solar disc SDO HMI 2014-10-09 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.07 | -17.11 | 84.07 | 14.23 | 210.85 | 0.4600 | 840.0 | 573.4 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -21.13 | 80.64 | 10.80 | 200.88 | 0.4923 | 662.0 | 483.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.64 | 79.72 | 9.88 | 205.05 | 0.3936 | 768.0 | 582.8 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -19.36 | 79.52 | 9.68 | 200.21 | 0.4610 | 741.0 | 610.5 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -19.43 | 79.36 | 9.52 | 199.86 | 0.4611 | 809.0 | 726.1 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -14.95 | 79.10 | 9.26 | 203.35 | 0.3941 | 690.0 | 640.5 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -21.17 | 79.27 | 9.43 | 198.41 | 0.4858 | 881.0 | 679.5 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -15.02 | 77.85 | 8.01 | 200.41 | 0.3877 | 788.0 | 663.8 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -17.33 | 76.46 | 6.62 | 195.40 | 0.4160 | 574.0 | 502.7 | |
| 0.00 | 0.44 | 0.00 | 0.24 | -17.71 | 75.59 | 5.75 | 193.23 | 0.4185 | 392.0 | 465.0 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -18.62 | 74.44 | 4.60 | 190.25 | 0.4289 | 887.0 | 594.1 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -19.05 | 74.10 | 4.26 | 189.34 | 0.4346 | 803.0 | 690.2 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -19.85 | 74.12 | 4.28 | 189.08 | 0.4470 | 586.0 | 432.5 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -22.13 | 73.51 | 3.67 | 187.11 | 0.4808 | 720.0 | 538.7 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.66 | 71.01 | 1.17 | 183.02 | 0.3753 | 437.0 | 419.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -22.12 | 67.91 | -1.93 | 176.25 | 0.4780 | -815.0 | -608.9 | |
| 0.00 | 1.75 | 0.00 | 0.99 | -22.08 | 67.69 | -2.15 | 175.81 | 0.4777 | -773.0 | -693.7 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -23.56 | 67.63 | -2.21 | 175.93 | 0.5003 | -668.0 | -611.5 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -27.51 | 67.38 | -2.46 | 176.08 | 0.5591 | -688.0 | -471.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
