SDO HMI 2014-10-09 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.52 | 20.94 | 2.93 | 11.18 | -13.22 | 60.29 | -9.55 | 154.39 | 0.3715 | 136.1 | 105.6 | |
|
previous
or next observation for the same group /

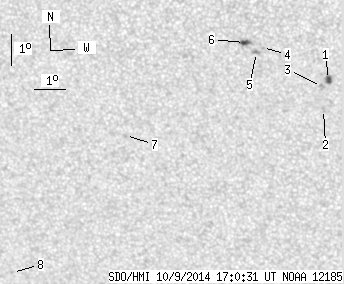

back to the solar disc SDO HMI 2014-10-09 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.72 | 4.82 | 1.44 | 2.55 | -13.05 | 62.35 | -7.49 | 158.92 | 0.3548 | 1134.0 | 870.9 | |
| 0.00 | 1.84 | 0.00 | 0.98 | -14.00 | 62.16 | -7.68 | 159.41 | 0.3704 | 789.0 | 605.6 | |
| 0.00 | 3.07 | 0.00 | 1.63 | -13.27 | 62.12 | -7.72 | 158.58 | 0.3595 | 808.0 | 609.6 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -12.07 | 60.33 | -9.51 | 152.69 | 0.3536 | -687.0 | -626.0 | |
| 0.00 | 2.89 | 0.00 | 1.53 | -12.23 | 60.14 | -9.70 | 152.43 | 0.3574 | -973.0 | -783.7 | |
| 2.80 | 4.73 | 1.49 | 2.51 | -11.92 | 59.78 | -10.06 | 151.14 | 0.3557 | -1025.4 | -793.8 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -14.96 | 55.87 | -13.97 | 146.98 | 0.4297 | 466.0 | 385.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -19.56 | 51.76 | -18.08 | 145.81 | 0.5224 | 707.0 | 614.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
