SDO HMI 2014-10-09 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.16 | 0.00 | 6.20 | 13.81 | 61.25 | -8.04 | 235.16 | 0.2129 | -12.4 | -107.5 | |
|
previous
or next observation for the same group /

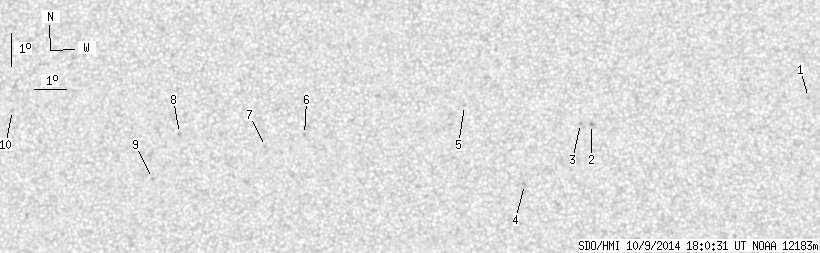

back to the solar disc SDO HMI 2014-10-09 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 15.02 | 73.87 | 4.59 | 333.19 | 0.1720 | -778.0 | -642.8 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 14.23 | 67.15 | -2.14 | 14.59 | 0.1441 | -1046.0 | -849.4 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 14.26 | 66.81 | -2.48 | 16.73 | 0.1462 | -866.0 | -684.6 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 12.41 | 65.11 | -4.18 | 33.50 | 0.1295 | -806.0 | -762.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.78 | 63.21 | -6.08 | 34.54 | 0.1815 | -937.0 | -738.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 13.83 | 58.24 | -11.05 | 54.28 | 0.2302 | 846.0 | 684.4 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 13.44 | 57.04 | -12.25 | 58.29 | 0.2437 | 798.0 | 660.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 13.77 | 54.29 | -15.00 | 61.86 | 0.2863 | 855.0 | 644.6 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 12.39 | 53.52 | -15.77 | 67.32 | 0.2890 | 974.0 | 834.5 | |
| 0.00 | 1.31 | 0.00 | 0.70 | 14.29 | 48.84 | -20.45 | 66.60 | 0.3705 | 836.0 | 614.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
