SDO HMI 2014-10-09 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 26.55 | 1.39 | 14.27 | -14.06 | 58.90 | -9.84 | 155.04 | 0.3856 | 300.5 | -6.9 | |
|
previous
or next observation for the same group /

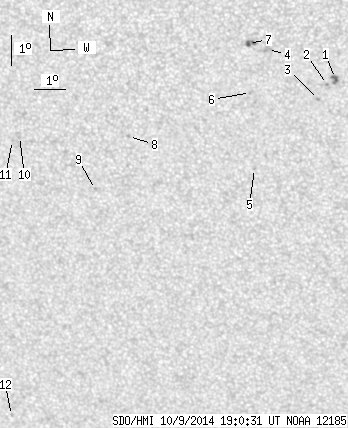

back to the solar disc SDO HMI 2014-10-09 19:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 4.64 | 0.79 | 2.45 | -13.03 | 62.45 | -6.29 | 162.07 | 0.3480 | 1138.6 | 933.3 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -13.23 | 62.20 | -6.54 | 161.57 | 0.3523 | 704.0 | 620.4 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -13.71 | 61.90 | -6.83 | 161.26 | 0.3612 | 867.0 | 625.6 | |
| 0.00 | 4.82 | 0.00 | 2.54 | -12.14 | 60.37 | -8.36 | 155.67 | 0.3466 | -822.0 | -741.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.95 | 59.82 | -8.92 | 158.41 | 0.4068 | 640.0 | 531.5 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -13.51 | 59.80 | -8.94 | 155.84 | 0.3708 | 801.0 | 603.7 | |
| 1.14 | 5.52 | 0.60 | 2.91 | -11.96 | 59.79 | -8.94 | 153.96 | 0.3480 | -917.5 | -889.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -15.00 | 55.88 | -12.85 | 149.16 | 0.4209 | 764.0 | 628.8 | |
| 0.00 | 1.49 | 0.00 | 0.83 | -16.74 | 54.71 | -14.03 | 149.07 | 0.4536 | 731.0 | 548.6 | |
| 0.00 | 1.40 | 0.00 | 0.78 | -15.10 | 52.38 | -16.35 | 142.93 | 0.4528 | -594.0 | -505.8 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -15.23 | 52.15 | -16.59 | 142.72 | 0.4567 | -757.0 | -603.4 | |
| 0.00 | 1.49 | 0.00 | 0.90 | -24.44 | 51.07 | -17.67 | 151.35 | 0.5785 | 740.0 | 486.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
