SDO HMI 2014-10-09 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.53 | 0.00 | 9.44 | 14.79 | 88.83 | 20.64 | 296.62 | 0.3826 | 248.2 | 302.0 | |
|
previous
or next observation for the same group /

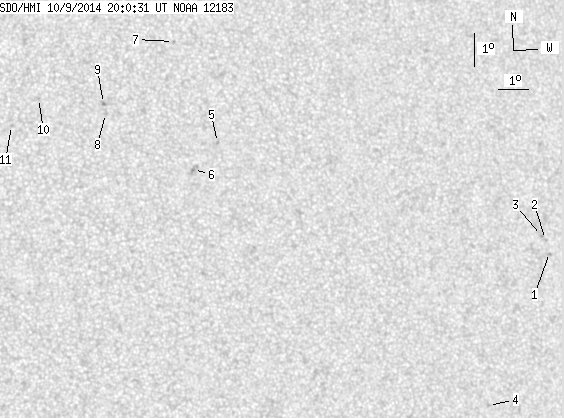

back to the solar disc SDO HMI 2014-10-09 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.30 | 11.93 | 98.73 | 30.55 | 282.88 | 0.5122 | -616.0 | -646.7 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 12.33 | 98.64 | 30.46 | 283.68 | 0.5117 | -690.0 | -605.9 | |
| 0.00 | 1.40 | 0.00 | 0.81 | 12.45 | 98.52 | 30.33 | 283.96 | 0.5102 | -827.0 | -651.6 | |
| 0.00 | 1.40 | 0.00 | 0.79 | 7.46 | 96.17 | 27.99 | 274.15 | 0.4684 | -784.0 | -599.2 | |
| 0.00 | 1.23 | 0.00 | 0.65 | 15.76 | 87.84 | 19.66 | 297.89 | 0.3679 | 857.0 | 702.2 | |
| 0.00 | 4.38 | 0.00 | 2.32 | 14.97 | 86.98 | 18.79 | 296.81 | 0.3502 | 1055.0 | 758.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 18.89 | 86.72 | 18.54 | 306.68 | 0.3768 | 702.0 | 579.7 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 16.76 | 84.27 | 16.08 | 305.12 | 0.3257 | 784.0 | 646.9 | |
| 0.00 | 1.93 | 0.00 | 1.01 | 17.07 | 84.23 | 16.05 | 305.97 | 0.3279 | 920.0 | 702.8 | |
| 0.00 | 1.31 | 0.00 | 0.68 | 17.28 | 82.14 | 13.96 | 310.17 | 0.3027 | 641.0 | 490.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 16.48 | 81.21 | 13.03 | 309.84 | 0.2828 | 688.0 | 512.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
