SDO HMI 2014-10-09 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 20.16 | 0.79 | 10.83 | -13.85 | 58.39 | -9.79 | 155.48 | 0.3829 | 83.6 | -163.6 | |
|
previous
or next observation for the same group /

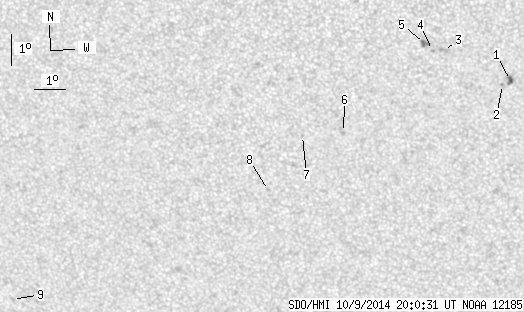

back to the solar disc SDO HMI 2014-10-09 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 3.94 | 0.79 | 2.08 | -13.09 | 62.48 | -5.70 | 163.68 | 0.3460 | 1118.9 | 914.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -13.22 | 62.23 | -5.95 | 163.12 | 0.3493 | 785.0 | 643.2 | |
| 0.00 | 3.68 | 0.00 | 1.94 | -12.16 | 60.44 | -7.75 | 157.29 | 0.3429 | -957.0 | -780.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.17 | 60.10 | -8.09 | 156.41 | 0.3452 | -678.0 | -573.3 | |
| 0.00 | 4.82 | 0.00 | 2.54 | -11.95 | 59.85 | -8.33 | 155.52 | 0.3435 | -1137.0 | -871.5 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -14.83 | 57.20 | -10.98 | 152.77 | 0.4041 | 729.0 | 628.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.95 | 55.90 | -12.28 | 150.23 | 0.4157 | 647.0 | 467.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -16.76 | 54.70 | -13.49 | 150.08 | 0.4496 | 706.0 | 513.2 | |
| 0.00 | 1.84 | 0.00 | 1.11 | -20.66 | 45.74 | -22.45 | 141.24 | 0.5728 | -244.0 | -187.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
