SDO HMI 2014-10-09 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.62 | 0.00 | 5.26 | -17.79 | 104.20 | 36.57 | 234.89 | 0.6897 | -171.3 | 12.5 | |
|
previous
or next observation for the same group /

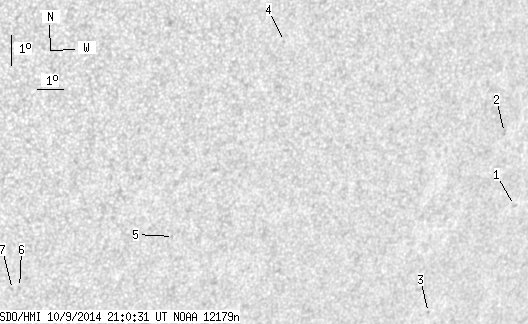

back to the solar disc SDO HMI 2014-10-09 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 1.01 | -18.50 | 111.33 | 43.70 | 239.23 | 0.7648 | 440.0 | 364.1 | |
| 0.00 | 2.10 | 0.00 | 1.55 | -16.05 | 110.18 | 42.55 | 241.57 | 0.7414 | 417.0 | 382.0 | |
| 0.00 | 0.70 | 0.00 | 0.53 | -21.84 | 108.72 | 41.09 | 233.83 | 0.7580 | 353.0 | 372.4 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -12.49 | 100.83 | 33.20 | 240.38 | 0.6173 | -545.0 | -418.5 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -18.57 | 97.81 | 30.18 | 229.58 | 0.6282 | -567.0 | -601.0 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -19.97 | 92.54 | 24.91 | 222.48 | 0.5884 | -506.0 | -475.3 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -20.03 | 92.31 | 24.68 | 222.15 | 0.5867 | -791.0 | -583.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
