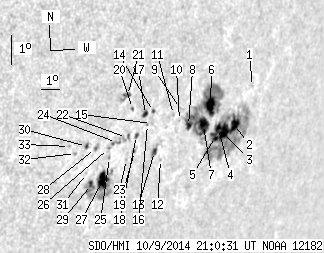

SDO HMI 2014-10-09 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.27 | 325.50 | 76.76 | 312.55 | -15.27 | 122.90 | 55.27 | 247.88 | 0.8572 | 260.4 | 116.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.99 | -14.08 | 125.89 | 58.26 | 250.17 | 0.8788 | 287.0 | 248.6 | |
| 9.81 | 130.37 | 10.04 | 132.67 | -15.23 | 125.31 | 57.68 | 248.74 | 0.8770 | 474.1 | 113.1 | |
| 11.92 | -2.00 | 12.02 | -2.00 | -15.43 | 124.76 | 57.13 | 248.34 | 0.8731 | 727.7 | 999999 | |
| 4.21 | -2.00 | 4.19 | -2.00 | -15.27 | 124.41 | 56.78 | 248.41 | 0.8699 | 741.6 | 999999 | |
| 4.91 | -2.00 | 4.89 | -2.00 | -15.52 | 124.34 | 56.71 | 248.11 | 0.8700 | 631.9 | 999999 | |
| 12.18 | 101.02 | 11.81 | 97.42 | -14.47 | 123.63 | 56.00 | 249.05 | 0.8616 | 795.5 | 409.4 | |
| 11.04 | -6.00 | 10.72 | -6.00 | -15.09 | 123.49 | 55.86 | 248.31 | 0.8620 | 828.6 | 999999 | |
| 2.28 | -6.00 | 2.16 | -6.00 | -15.01 | 122.63 | 55.00 | 248.12 | 0.8547 | 714.2 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.46 | -14.41 | 121.98 | 54.35 | 248.57 | 0.8475 | 421.0 | 422.3 | |
| 0.00 | 0.53 | 0.00 | 0.49 | -14.80 | 122.06 | 54.43 | 248.17 | 0.8493 | 375.0 | 411.0 | |
| 0.00 | 1.23 | 0.00 | 1.13 | -14.57 | 121.66 | 54.03 | 248.29 | 0.8452 | 460.0 | 482.6 | |
| 0.00 | 1.05 | 0.00 | 0.98 | -15.99 | 121.51 | 53.87 | 246.63 | 0.8480 | -285.0 | -233.7 | |
| 2.45 | 4.29 | 2.25 | 3.94 | -15.69 | 121.07 | 53.44 | 246.81 | 0.8434 | -480.0 | -350.7 | |
| 0.79 | 1.75 | 0.71 | 1.57 | -14.37 | 120.55 | 52.92 | 248.12 | 0.8349 | -189.8 | -211.8 | |
| 0.00 | 1.05 | 0.00 | 0.95 | -14.75 | 120.58 | 52.94 | 247.69 | 0.8363 | 219.0 | 202.0 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -14.77 | 120.37 | 52.74 | 247.61 | 0.8346 | -143.0 | -100.5 | |
| 2.10 | 3.24 | 1.86 | 2.87 | -14.43 | 120.16 | 52.53 | 247.91 | 0.8316 | -380.5 | -285.5 | |
| 1.05 | 2.28 | 0.93 | 2.02 | -15.08 | 119.92 | 52.29 | 247.09 | 0.8315 | -273.4 | -186.6 | |
| 0.00 | 1.49 | 0.00 | 1.33 | -15.59 | 120.00 | 52.37 | 246.53 | 0.8338 | -231.0 | -172.2 | |
| 0.00 | 1.05 | 0.00 | 0.91 | -14.17 | 119.41 | 51.78 | 247.94 | 0.8241 | 179.0 | 298.3 | |
| 1.84 | 5.43 | 1.58 | 4.66 | -13.73 | 119.02 | 51.39 | 248.31 | 0.8191 | -610.6 | -499.1 | |
| 0.00 | 4.91 | 0.00 | 4.30 | -15.10 | 119.42 | 51.79 | 246.88 | 0.8270 | -610.0 | -413.8 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -15.82 | 119.67 | 52.04 | 246.15 | 0.8316 | -215.0 | -120.0 | |
| 0.00 | 3.68 | 0.00 | 3.19 | -15.21 | 118.96 | 51.32 | 246.57 | 0.8232 | -728.0 | -474.8 | |
| 0.00 | 1.05 | 0.00 | 0.91 | -15.67 | 118.77 | 51.13 | 245.96 | 0.8230 | -394.0 | -407.9 | |
| 0.00 | 0.88 | 0.00 | 0.76 | -15.37 | 118.61 | 50.98 | 246.25 | 0.8206 | -197.0 | -277.2 | |
| 11.92 | 33.56 | 10.38 | 29.36 | -16.40 | 118.68 | 51.05 | 245.09 | 0.8247 | -657.2 | -82.5 | |
| 0.44 | 3.42 | 0.37 | 2.90 | -15.32 | 117.95 | 50.32 | 246.06 | 0.8144 | -200.6 | -55.8 | |
| 2.37 | 14.11 | 2.04 | 12.16 | -16.49 | 118.16 | 50.53 | 244.79 | 0.8203 | -754.1 | -495.7 | |
| 0.96 | 2.19 | 0.81 | 1.84 | -15.21 | 117.48 | 49.85 | 245.99 | 0.8097 | -463.3 | -562.6 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -16.10 | 117.78 | 50.15 | 245.08 | 0.8155 | -482.0 | -389.0 | |
| 0.00 | 1.31 | 0.00 | 1.09 | -15.39 | 117.01 | 49.38 | 245.58 | 0.8059 | -690.0 | -591.6 | |
| 0.00 | 1.05 | 0.00 | 0.87 | -15.14 | 116.64 | 49.01 | 245.73 | 0.8015 | -665.0 | -615.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
