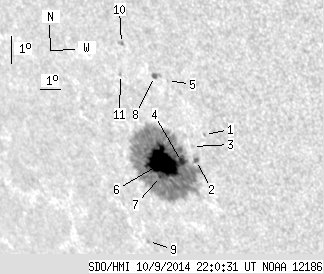

SDO HMI 2014-10-09 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.52 | 348.30 | 48.34 | 298.90 | -20.60 | 18.62 | -48.46 | 120.77 | 0.8177 | 909.8 | 209.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.85 | -19.55 | 20.95 | -46.13 | 120.72 | 0.7926 | 290.0 | 346.6 | |
| 1.40 | 335.51 | 1.16 | 288.19 | -20.47 | 20.22 | -46.86 | 121.40 | 0.8032 | 807.1 | 211.3 | |
| 0.00 | 1.40 | 0.00 | 1.15 | -20.01 | 20.21 | -46.86 | 120.88 | 0.8012 | 422.0 | 415.0 | |
| 4.12 | -2.00 | 3.46 | -2.00 | -20.56 | 19.47 | -47.61 | 121.14 | 0.8102 | 957.1 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.78 | -17.87 | 19.84 | -47.24 | 118.25 | 0.7955 | 374.0 | 383.9 | |
| 49.25 | -2.00 | 42.27 | -2.00 | -20.68 | 18.51 | -48.57 | 120.81 | 0.8190 | 1036.3 | 999999 | |
| 0.26 | -2.00 | 0.23 | -2.00 | -21.17 | 18.19 | -48.89 | 121.22 | 0.8237 | 322.3 | 999999 | |
| 1.49 | 3.86 | 1.22 | 3.17 | -17.79 | 19.26 | -47.82 | 117.89 | 0.8005 | 611.5 | 484.3 | |
| 0.00 | 1.23 | 0.00 | 1.14 | -23.51 | 16.44 | -50.64 | 122.97 | 0.8472 | 383.0 | 345.9 | |
| 0.00 | 2.80 | 0.00 | 2.35 | -16.83 | 18.04 | -49.04 | 116.23 | 0.8080 | -696.0 | -526.5 | |
| 0.00 | 1.49 | 0.00 | 1.27 | -17.87 | 17.61 | -49.47 | 117.24 | 0.8158 | 382.0 | 277.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
