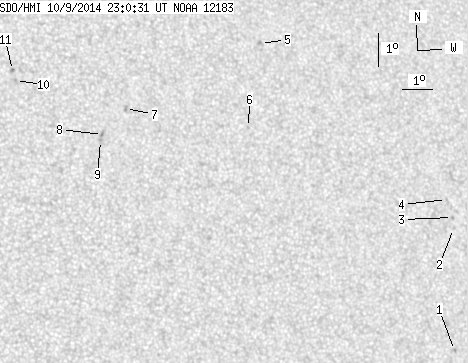

SDO HMI 2014-10-09 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.86 | 0.00 | 8.78 | 14.50 | 91.50 | 24.98 | 291.89 | 0.4422 | 290.5 | 296.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.82 | 7.97 | 98.32 | 31.80 | 275.07 | 0.5259 | -585.0 | -574.8 | |
| 0.00 | 1.40 | 0.00 | 0.82 | 11.62 | 98.69 | 32.16 | 281.92 | 0.5350 | -495.0 | -410.2 | |
| 0.00 | 1.23 | 0.00 | 0.72 | 11.96 | 98.70 | 32.17 | 282.54 | 0.5357 | -798.0 | -699.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 12.51 | 98.55 | 32.03 | 283.60 | 0.5348 | -568.0 | -583.8 | |
| 0.00 | 2.54 | 0.00 | 1.42 | 17.56 | 92.70 | 26.18 | 296.19 | 0.4706 | 691.0 | 603.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 15.04 | 91.92 | 25.40 | 291.47 | 0.4470 | 702.0 | 557.7 | |
| 0.00 | 2.19 | 0.00 | 1.18 | 15.79 | 87.85 | 21.32 | 296.30 | 0.3920 | 768.0 | 690.8 | |
| 0.00 | 1.75 | 0.00 | 0.94 | 15.03 | 87.00 | 20.48 | 295.25 | 0.3752 | 1006.0 | 837.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | 14.85 | 86.92 | 20.39 | 294.88 | 0.3729 | 833.0 | 749.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 16.77 | 84.31 | 17.78 | 302.68 | 0.3490 | 803.0 | 617.2 | |
| 0.00 | 1.58 | 0.00 | 0.83 | 17.08 | 84.24 | 17.72 | 303.54 | 0.3505 | 839.0 | 759.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
