SDO HMI 2014-10-09 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.73 | 0.00 | 7.44 | 13.00 | 60.45 | -6.08 | 190.86 | 0.1921 | 107.4 | 120.6 | |
|
previous
or next observation for the same group /

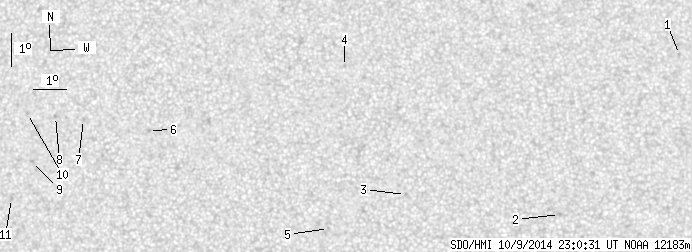

back to the solar disc SDO HMI 2014-10-09 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.75 | 15.75 | 73.72 | 7.19 | 323.99 | 0.2060 | -873.0 | -628.4 | |
| 0.00 | 1.75 | 0.00 | 0.87 | 10.96 | 69.90 | 3.37 | 324.96 | 0.1010 | -500.0 | -433.5 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 11.58 | 65.20 | -1.33 | 13.72 | 0.0961 | -840.0 | -623.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 15.43 | 63.29 | -3.24 | 18.82 | 0.1696 | -777.0 | -562.1 | |
| 0.00 | 0.79 | 0.00 | 0.39 | 10.55 | 62.86 | -3.67 | 39.92 | 0.0985 | -932.0 | -712.0 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 13.43 | 57.24 | -9.28 | 51.12 | 0.2024 | 1003.0 | 817.2 | |
| 0.00 | 1.58 | 0.00 | 0.80 | 13.73 | 55.20 | -11.33 | 55.27 | 0.2332 | 802.0 | 587.3 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 13.80 | 54.31 | -12.21 | 56.91 | 0.2463 | 858.0 | 694.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 12.43 | 53.66 | -12.87 | 63.09 | 0.2450 | 934.0 | 720.0 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 13.87 | 53.42 | -13.10 | 58.39 | 0.2596 | 755.0 | 672.4 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 11.30 | 53.05 | -13.47 | 68.27 | 0.2471 | 751.0 | 628.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
