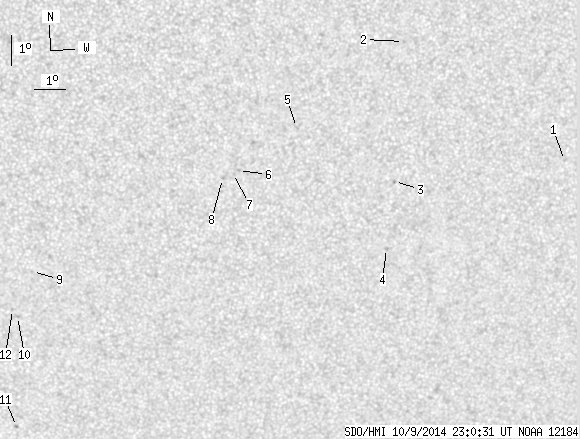

SDO HMI 2014-10-09 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.77 | 0.00 | 7.78 | -20.84 | 74.27 | 7.75 | 196.05 | 0.4828 | 247.3 | 160.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-09 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.51 | -18.74 | 85.14 | 18.61 | 215.94 | 0.5171 | 614.0 | 481.2 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.69 | 79.56 | 13.03 | 211.60 | 0.4181 | 762.0 | 589.8 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -19.25 | 79.59 | 13.06 | 206.51 | 0.4800 | 690.0 | 600.1 | |
| 0.00 | 1.67 | 0.00 | 0.96 | -21.49 | 79.52 | 12.99 | 204.32 | 0.5100 | 711.0 | 537.6 | |
| 0.00 | 1.40 | 0.00 | 0.77 | -17.39 | 76.31 | 9.79 | 202.10 | 0.4330 | 584.0 | 483.8 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -18.77 | 74.53 | 8.01 | 197.36 | 0.4439 | 815.0 | 607.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -18.87 | 74.38 | 7.85 | 196.97 | 0.4446 | 658.0 | 637.1 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -19.03 | 74.03 | 7.51 | 196.16 | 0.4455 | 737.0 | 665.0 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -22.09 | 68.02 | 1.49 | 182.91 | 0.4772 | -617.0 | -520.7 | |
| 0.00 | 1.67 | 0.00 | 0.95 | -23.63 | 67.55 | 1.02 | 181.87 | 0.5004 | -695.0 | -569.7 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -27.51 | 67.54 | 1.01 | 181.62 | 0.5581 | -670.0 | -557.5 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -23.39 | 67.38 | 0.85 | 181.59 | 0.4967 | -621.0 | -519.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
