SDO HMI 2014-10-09 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.18 | 347.46 | 49.30 | 295.11 | -20.61 | 18.51 | -48.02 | 121.00 | 0.8139 | 864.0 | 210.0 | |
|
previous
or next observation for the same group /

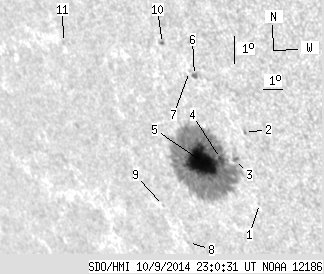

back to the solar disc SDO HMI 2014-10-09 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.43 | -21.88 | 20.72 | -45.81 | 123.53 | 0.8004 | -167.0 | -191.5 | |
| 0.00 | 1.40 | 0.00 | 1.12 | -19.50 | 20.96 | -45.57 | 120.95 | 0.7872 | 461.0 | 303.9 | |
| 0.79 | 3.42 | 0.65 | 2.80 | -20.46 | 20.18 | -46.35 | 121.65 | 0.7986 | 862.7 | 762.2 | |
| 1.31 | 334.14 | 1.09 | 283.93 | -20.48 | 19.47 | -47.06 | 121.32 | 0.8050 | 996.5 | 206.8 | |
| 54.33 | -4.00 | 46.13 | -4.00 | -20.67 | 18.49 | -48.04 | 121.05 | 0.8143 | 994.1 | 999999 | |
| 1.31 | 2.98 | 1.07 | 2.42 | -17.78 | 19.27 | -47.25 | 118.13 | 0.7952 | 619.5 | 499.3 | |
| 0.00 | 0.61 | 0.00 | 0.50 | -17.66 | 19.08 | -47.45 | 117.91 | 0.7965 | 355.0 | 269.0 | |
| 0.00 | 0.79 | 0.00 | 0.72 | -23.56 | 16.47 | -50.05 | 123.29 | 0.8428 | 379.0 | 330.6 | |
| 0.00 | 0.79 | 0.00 | 0.72 | -22.37 | 15.81 | -50.72 | 121.69 | 0.8434 | 414.0 | 355.1 | |
| 0.44 | 1.40 | 0.36 | 1.16 | -16.84 | 18.10 | -48.43 | 116.51 | 0.8024 | -652.0 | -515.8 | |
| 0.00 | 1.40 | 0.00 | 1.31 | -17.26 | 12.99 | -53.54 | 114.91 | 0.8489 | -78.0 | -79.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
